B'oh Recovery Spin Pin Shackle
B'oh Recovery Spin Pin Shackle

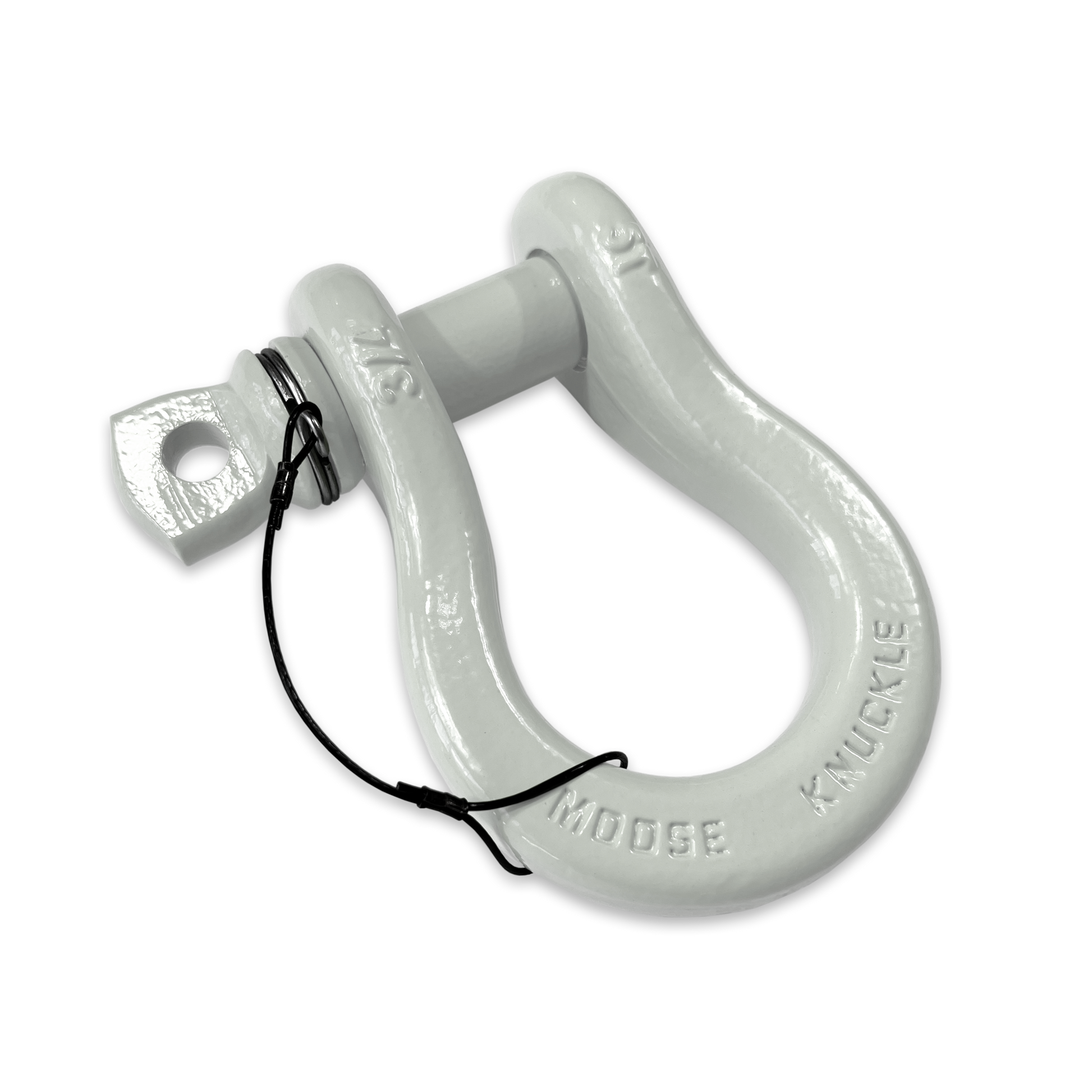

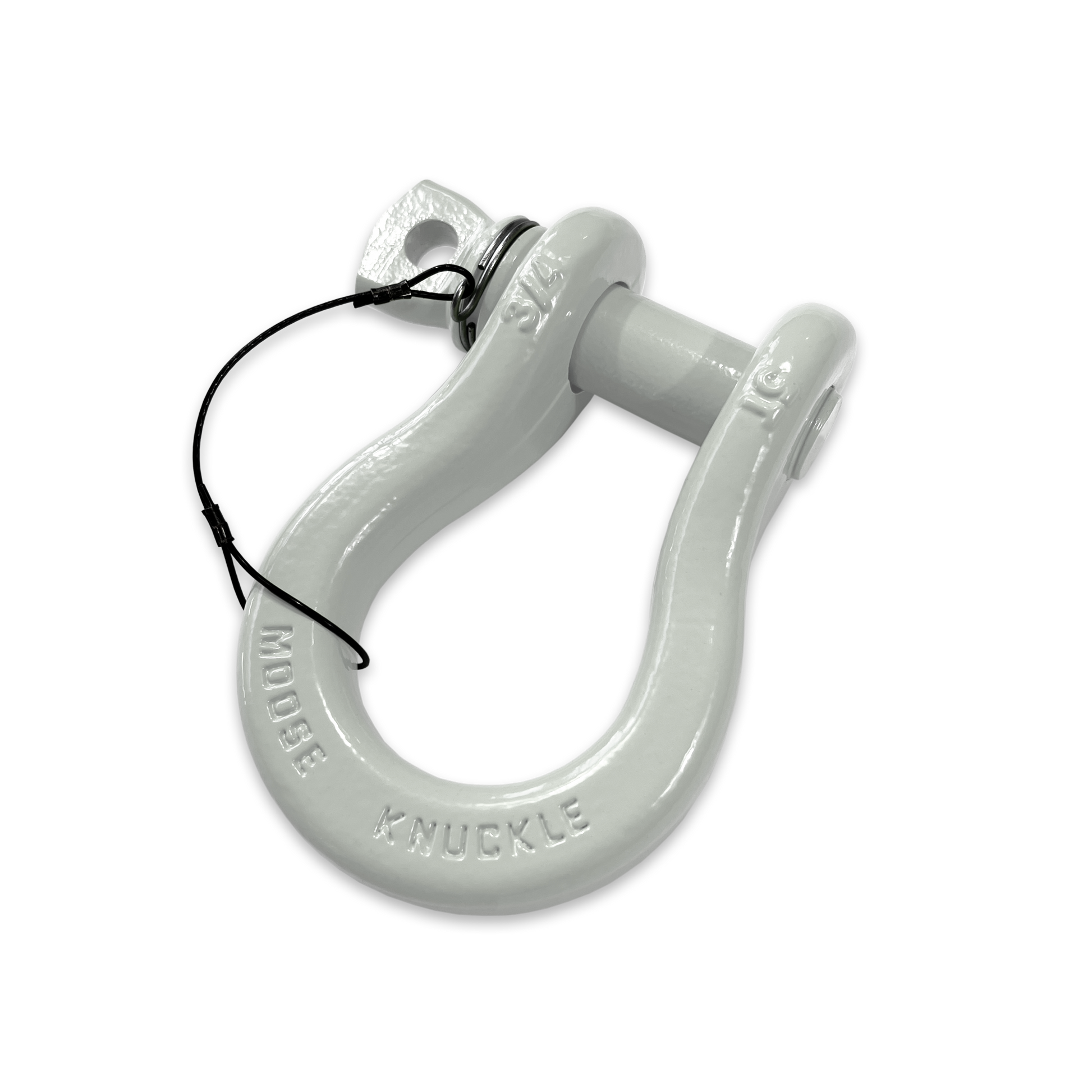

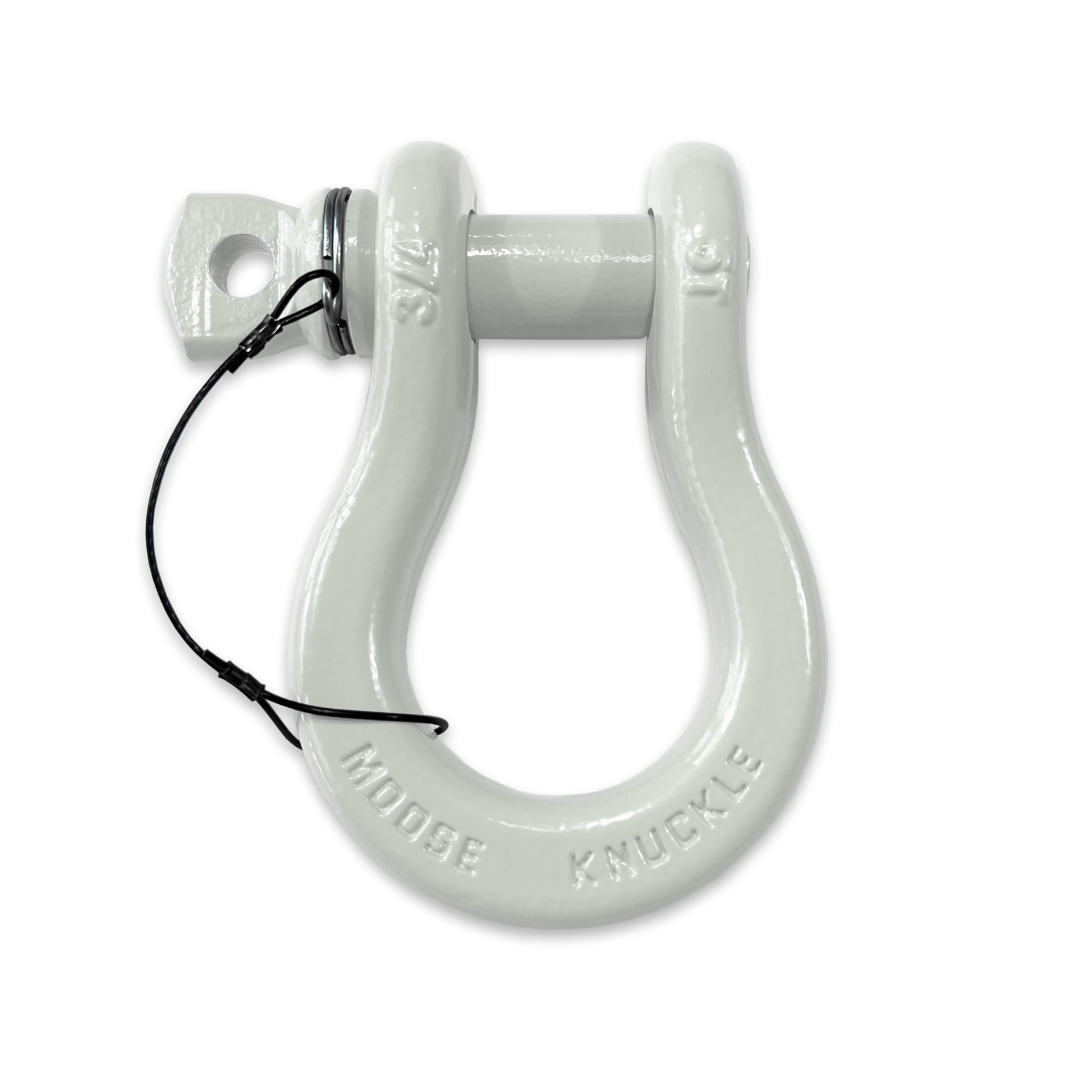

A twist (pun intented) on a standard D-ring bow recovery shackle our new pure white B'oh shackle incorporates an innovative Two Finger Spin Pin design to keep your pins and shackles joined together out on the trail. No more lost pins!

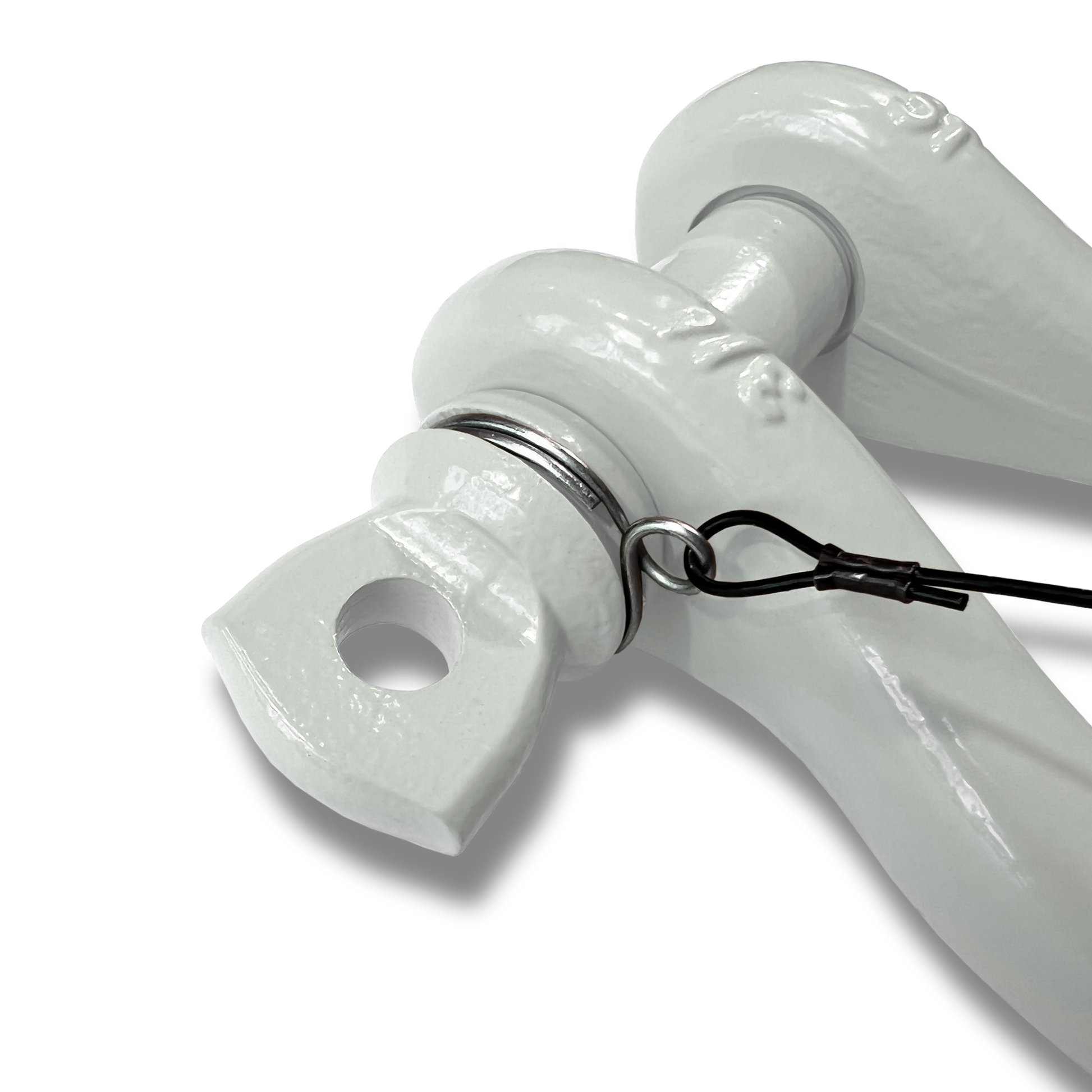

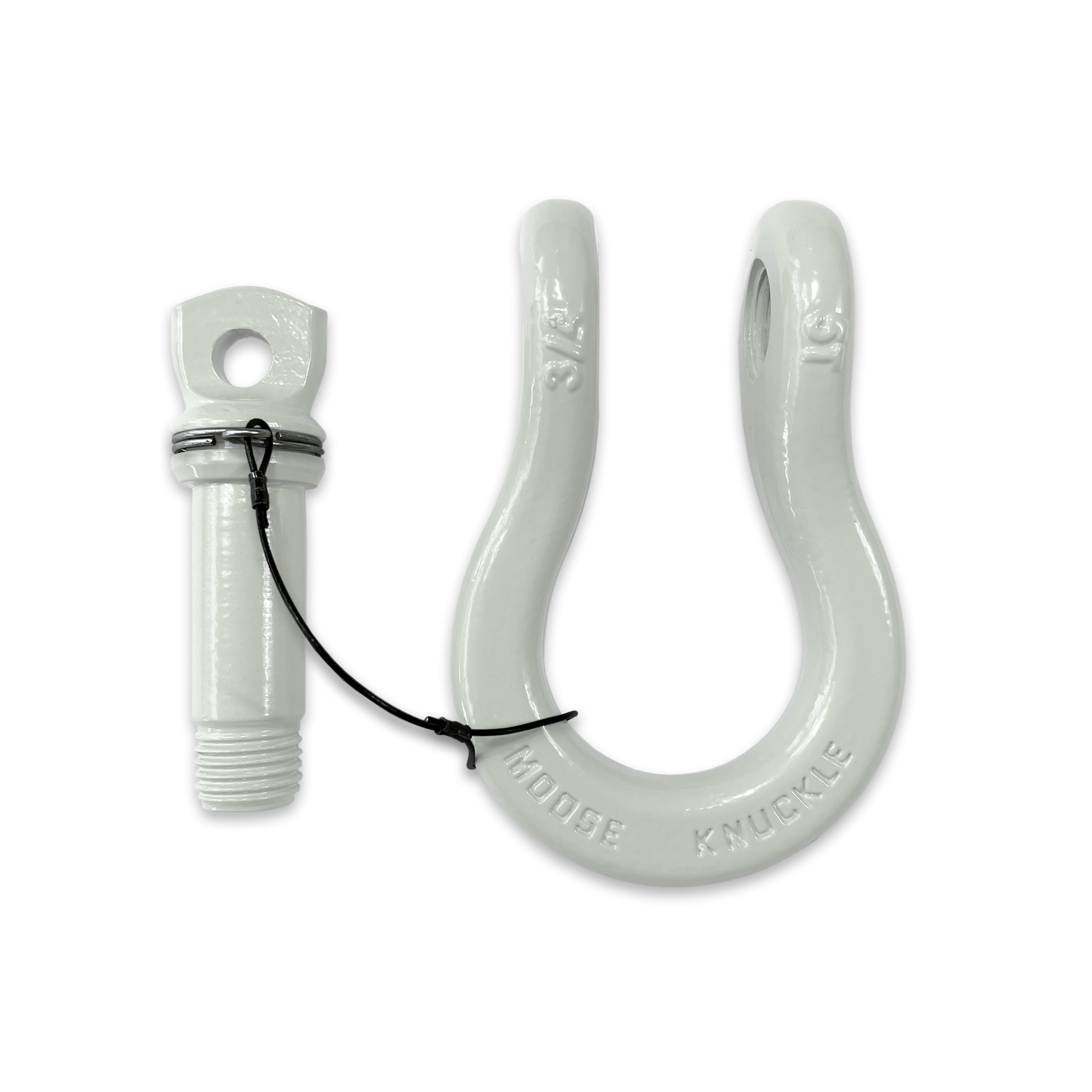

We collaborated with our partners over at Owyhee Offroad Parts to solve the lost pin and lanyard tangle problem by adding a grooved channel around the pin flange that holds a weather resistant stainless steel spin ring that spins freely while you rotate the pin when removing or replacing the pin in the shackle body. This allows the lanyard to stay in one position, out of the way, without wrapping the lanyard around the pin as you tighten or loosen your shackle.
Where a lanyard would normally be attached and in the way this spin pin design also leaves your pin hole empty so you can insert a tool to tighten or loosen your pin without damaging the lanyard.
The lanyard is made of 7 strand stainless 210 lb wire rope coated in black vinyl so it will not scratch your shackle or bumper as you bump your way down the trail.
Unlike a traditional lifting shackles we beef up this 3/4 inch bow shackle by giving the body side profile a taper that thickens and adds more material through the length of the shackle making it extremely safe and strong to handle the toughest recoveries. All inner and outer edges feature large curved soft shackle friendly edges so they will not damage your recovery ropes and other towing gear.

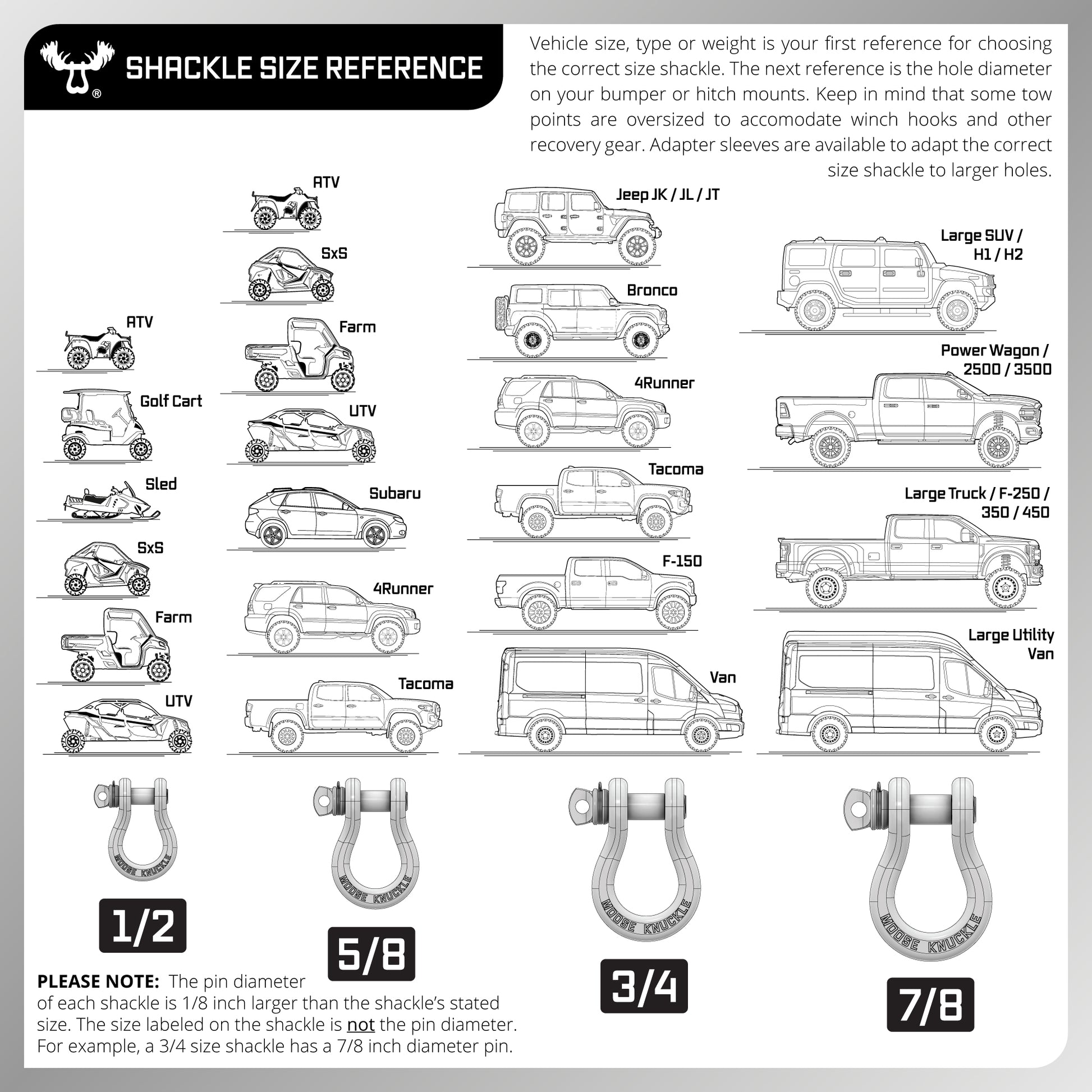

The Moose Knuckle Offroad B'oh Shackle fits any bumper shackle mount or tow shackle receiver hitch bracket mount with a 7/8" (0.875") pin hole and a mount width of 1-1/4" (1.25") or less.
All color options are fully covered with a durable coating pantone color matched to popular truck and Jeep colors.
Sold as single shackle.
Grape Escape - PMS Purple C
Blue Balls - PMS 2728C (Jeep)
Sublime Green - PMS 368C (Jeep)
Detonator Yellow - PMS 7549C (Jeep)
Obscene Orange - PMS 165C (Jeep)
Flame Red - PMS 1795C (Jeep)
Pretty Pink - PMS 7423C
Black Hole - 100% Black
Gun Gray - PMS 425C
Pure White - 100% White
Nice Gal - Galvanized
Brass Knuckle - Brass Coated
Raw Dog - Uncoated (See warning below - will rust if left uncoated)
The "Raw Dog" uncoated option is ready to add primer and paint or powder coating so you can color match your vehicle or just add any finish of your choosing. Class 6H/6b (2A and 2B equivalent) thread tolerances between the pin and body allow for the addition of these coatings without hindering assembly. (***Please note: this option will show signs of weathering and rust if left uncoated.)
- Item: B'oh Shackle
- Color: Pure White
- Pin Style: Screw
- Pin Feature: Two Finger Spin Pin Ring Lanyard
- WLL: 10,000 lb.
- FoS (Factor of Safety): 5:1
- Width Between Eyes: 1-1/4" (1.25")
- Finish: Powder Coated
- Pin Diameter: 7/8" (0.875")
- Thread Size: M22 x 2.5mm - 6H/6g
- Pin Material: Carbon Steel
- Body Material: Carbon Steel
*Manufactured to meet or exceed ASME B30.26 standards but is not certified.
