3500 lb. Winch | PE3500
3500 lb. Winch | PE3500
SKU:sku-39957956132924
Couldn't load pickup availability

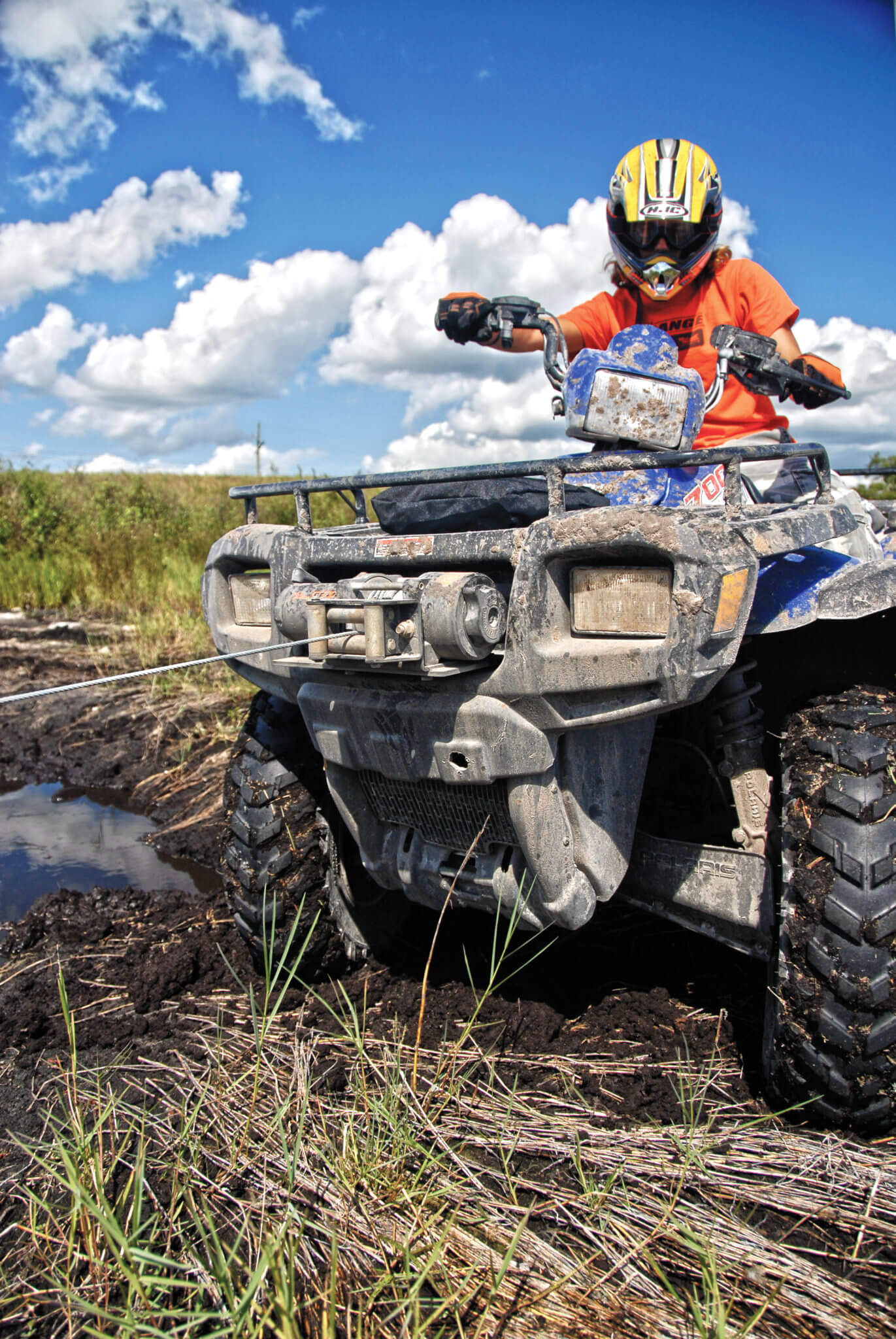

At less than 16 pounds, the Mile Marker PE3500winch for ATVs boasts top-of-the-line recovery speeds and an impressive 3500 pounds of pulling capacity. Fully-sealed, submersible, water, mud, and snow proof, the PE3500 Steel Cable Version comes with a 7/32” x 42’ steel cable, a roller fairlead, the Synthetic Rope version comes with a 7/32” x 50’ synthetic rope, they both come with a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience.
With the all-metal, 3-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE3500 provides the durability and reliability you can depend on in the most extreme situations.
Main Features:
• 2.4 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 200 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 50′ of Synthetic Rope Or 42′ of Steel Cable
• Aluminum Hawse Fairlead Or Roller Fairlead
• Waterproof
• Handheld and Handlebar Remote Controls
Specifications
Steel Cable
| Part Number | 77-50112BW |
| Rated line pull | 3500 lbs (1588 kg) Single Line |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 242:1 |
| Motor | Permanent Magnet, 2.4 hp (1.5kw), 12 V DC |
| Remote Control | Power-In, Power-Out Remote, 12’ (3.7 m) |
| Dimensions (LxWxH) | 13.0” X 4.1” X 4.2” (330 mm X 105 mmX 108 mm) |
| Steel Cable | 7/32” X 42’ (nominal 5,600 lbs, 2540 kg) (5.45 mm X 12.7 m) |
| Drum Size Diameter/Length |
1.5” X 3.15” (38.1 mm X 80 mm) |
| Net weight | 20.7 lbs (9.4 kg) |
| Bolt Pattern | 4 Bolt Pattern, 4.88” X 3” (124 mm X 76.2 mm) |
Synthetic Rope
| Part Number | 77-53112BW |
| Rated line pull | 3500 lbs (1588 kg) Single Line |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 242:1 |
| Motor | Permanent Magnet, 2.4 hp (1.5kw), 12 V DC |
| Remote Control | Power-In, Power-Out Remote, 12’ (3.6 m) |
| Dimensions (LxWxH) | 13.0” X 4.1” X 4.2” (330 mm X 105 mmX 108 mm) |
| Synthetic Rope | 7/32” X 50’ (nominal 5440 lbs, 2468 kg) (5.5 mm X 15.2 m) |
| Drum Size Diameter/Length | 1.5” X 3.15” (38.1 mm X 80 mm) |
| Net weight | 15.9 lbs (9.4 kg) |
| Bolt Pattern | 4 Bolt Pattern, 4.88” X 3” (124 mm X 76.2 mm) |
Performance
| LINE PULL | LINE PULL | LINE SPEED | LINE SPEED | MOTOR CURRENT |
|---|---|---|---|---|
| lb | kg | fpm | mpm | amps @ 12 V |
| 0 | 0 | 19 | 5.8 | 43 |
| 500 | 227 | 16.2 | 4.9 | 62 |
| 1000 | 454 | 14.4 | 4.4 | 95 |
| 1500 | 680 | 13 | 3.9 | 110 |
| 2000 | 907 | 11.7 | 3.6 | 130 |
| 2500 | 1134 | 10.8 | 3.3 | 140 |
| 3000 | 1360 | 10.2 | 3.1 | 152 |
| 3500 | 1588 | 9.8 | 2.9 | 160 |
Instructions
