3500 lb. UTV Winch PE3500

At less than 16 pounds, the Mile Marker PE3500winch for ATVs boasts top-of-the-line recovery speeds and an impressive 3500 pounds of pulling capacity. Fully-sealed, submersible, water, mud, and snow proof, the PE3500 Steel Cable Version comes with a 7/32” x 42’ steel cable, a roller fairlead, the Synthetic Rope version comes with a 7/32” x 50’ synthetic rope, they both come with a hook, corrosive-resistant, and a handheld remote control and a handle bar mounted remote control for versatility and convenience.

With the all-metal, 3-stage planetary gear train, 200-amp solenoid, high-output, permanent magnet motor and marine grade remote control connectors, the PE3500 provides the durability and reliability you can depend on in the most extreme situations.

Main Features:

• 2.4 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 200 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 50′ of Synthetic Rope Or 42′ of Steel Cable
• Aluminum Hawse Fairlead Or Roller Fairlead
• Waterproof
• Handheld and Handlebar Remote Controls

Specifications

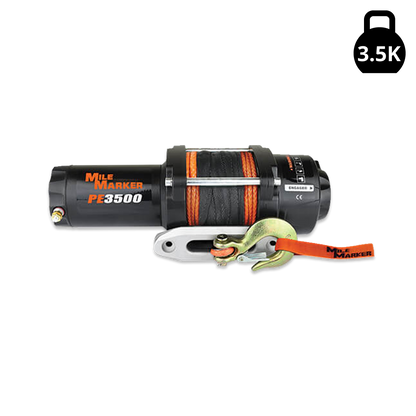

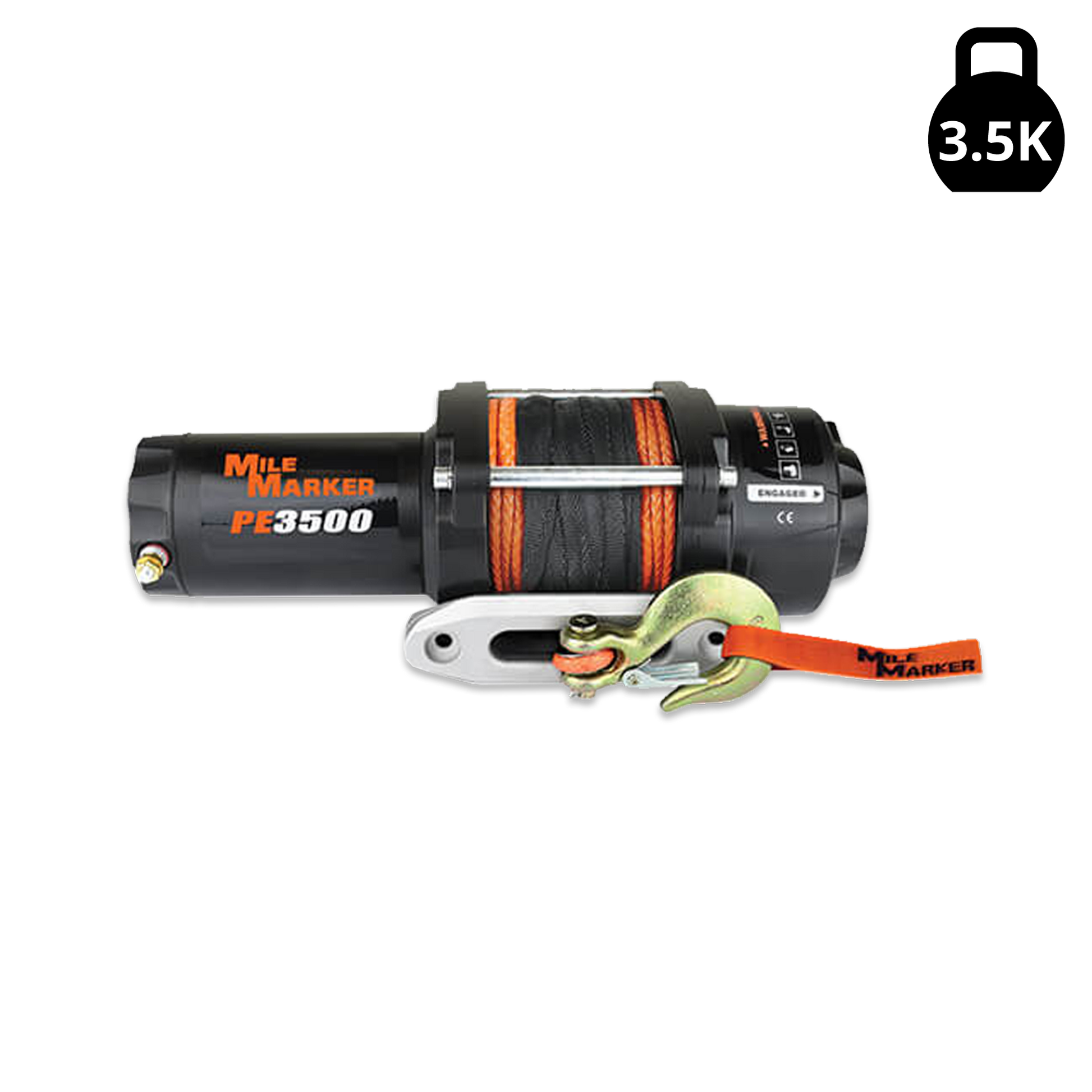

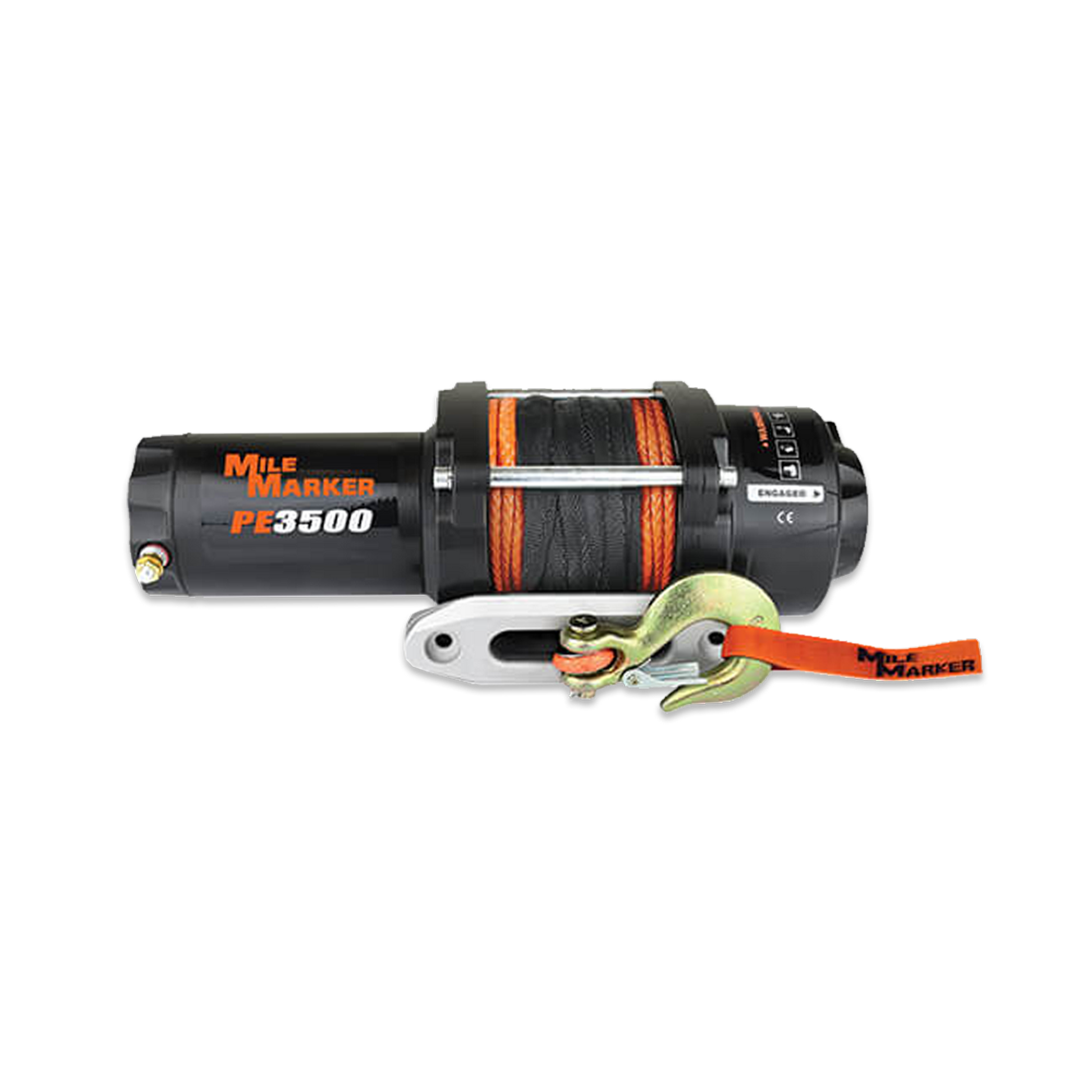

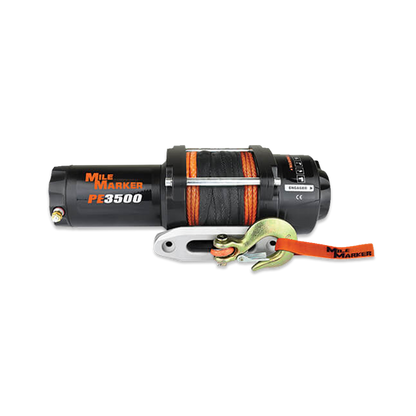

Synthetic Rope

• Part Number: 77-53112BW
• Rated line pull: 3500 lbs (1588 kg)
• Single Line Gear Train: 3 Stage Planetary
• Gear Ratio: 242:1
• Motor: Permanent Magnet, 2.4 hp (1.5kw), 12 V DC
• Remote Control: Power-In, Power-Out Remote, 12’ (3.6 m)
• Dimensions (LxWxH): 13.0” X 4.1” X 4.2” (330 mm X 105 mmX 108 mm)
• Synthetic Rope: 7/32” X 50’ (nominal 5440 lbs, 2468 kg) (5.5 mm X 15.2 m)
• Drum Size (Diameter/Length): 1.5” X 3.15” (38.1 mm X 80 mm)
• Net weight: 15.9 lbs (9.4 kg)
• Bolt Pattern: 4 Bolt Pattern, 4.88” X 3” (124 mm X 76.2 mm)

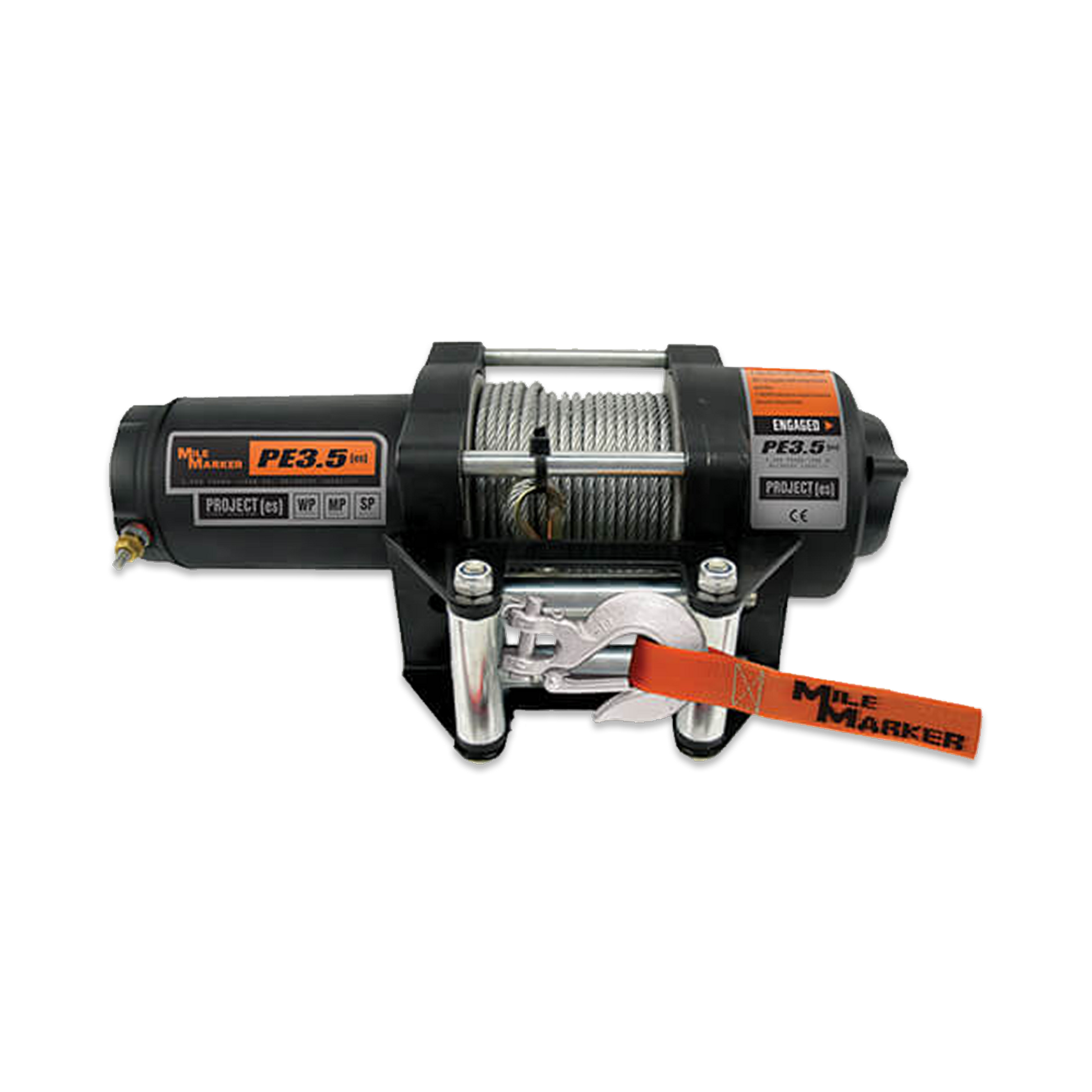

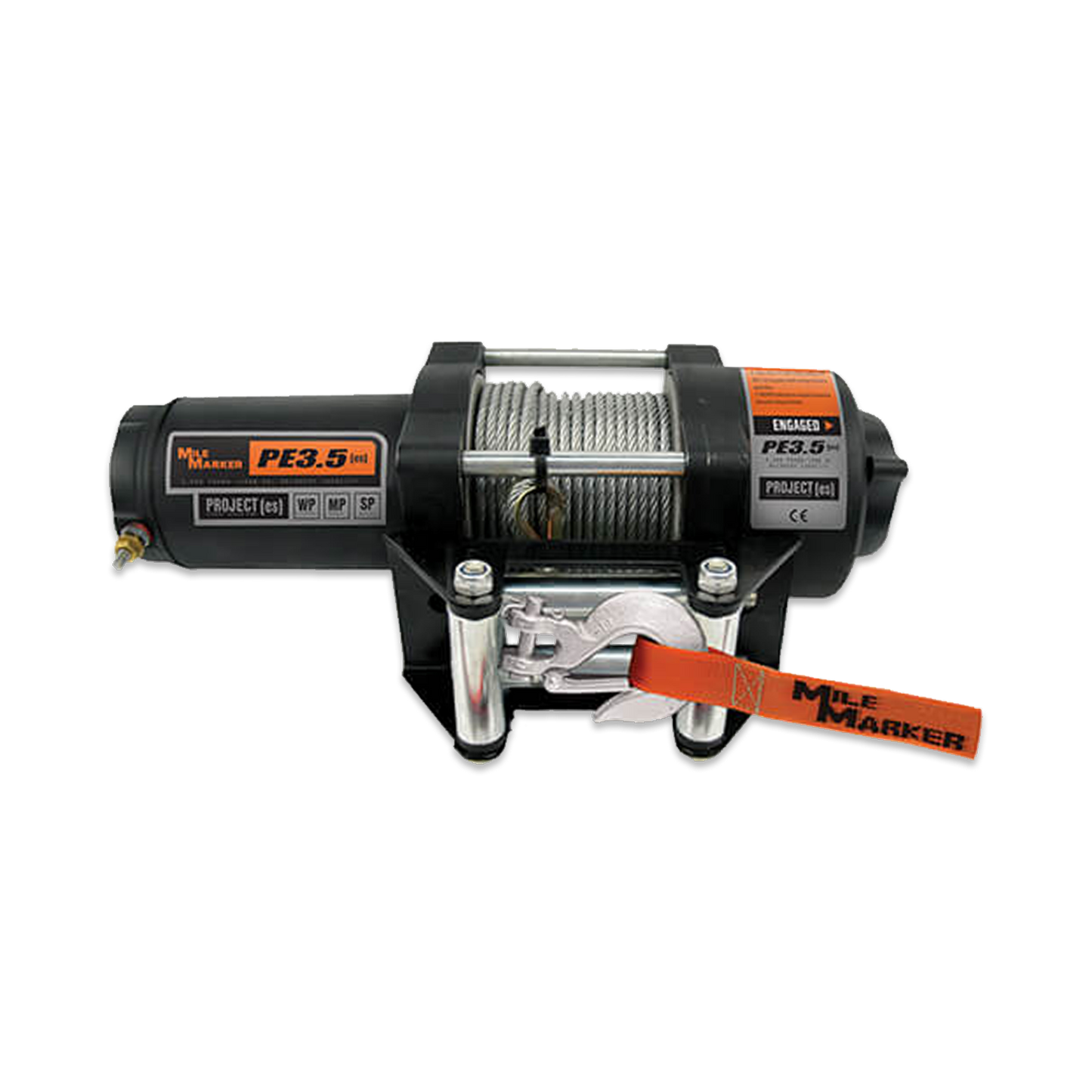

Steel Cable

• Part Number: 77-50112BW
• Rated line pull: 3500 lbs (1588 kg) Single Line
• Gear Train: 3 Stage Planetary
• Gear Ratio: 242:1
• Motor: Permanent Magnet, 2.4 hp (1.5kw), 12 V DC
• Remote Control: Power-In, Power-Out Remote, 12’ (3.7 m)
• Dimensions (LxWxH): 13.0” X 4.1” X 4.2” (330 mm X 105 mmX 108 mm)
• Steel Cable: 7/32” X 42’ (nominal 5,600 lbs, 2540 kg) (5.45 mm X 12.7 m)
• Drum Size (Diameter/Length): 1.5” X 3.15” (38.1 mm X 80 mm)
• Net weight: 20.7 lbs (9.4 kg) Bolt Pattern 4 Bolt Pattern, 4.88” X 3” (124 mm X 76.2 mm)

Manual: Mile Marker Industries PE3500 UTV Winch Manual
