5000 lb. UTV Winch PE5000

The PE5000 series winch is a mini-monster of UTV recovery power packed into a sleek, compact design. Featuring an all-metal, 3-stage planetary gear system, a submersible, 250-amp solenoid, and 5,000 pounds of pulling capacity, at only 19 pounds there is nowhere this winch can’t go.

Fully-sealed, submersible, water, mud, and snow proof, the PE5000 Steel Cable Version comes with a 1/4” x 79’ steel cable, a galvanized roller fairlead, the Synthetic Rope version comes with a 1/4” x 50’ synthetic rope, an anodized aluminum hawse fairlead, a hook, corrosive-resistant, and a handheld remote control for versatility and convenience.

Main Features:

• 3.8 HP Permanent Magnet Motor
• All Metal Planetary Gearing
• Submersible, 250 Amp Solenoid
• Automatic Load Holding Brake
• Center Focused Drum
• Fast Line Speeds
• 79′ of Steel Cable or 50'of Synthetic Rope
• Aluminum Hawse Fairlead
• Waterproof
• Handheld Remote Controls

Specifications

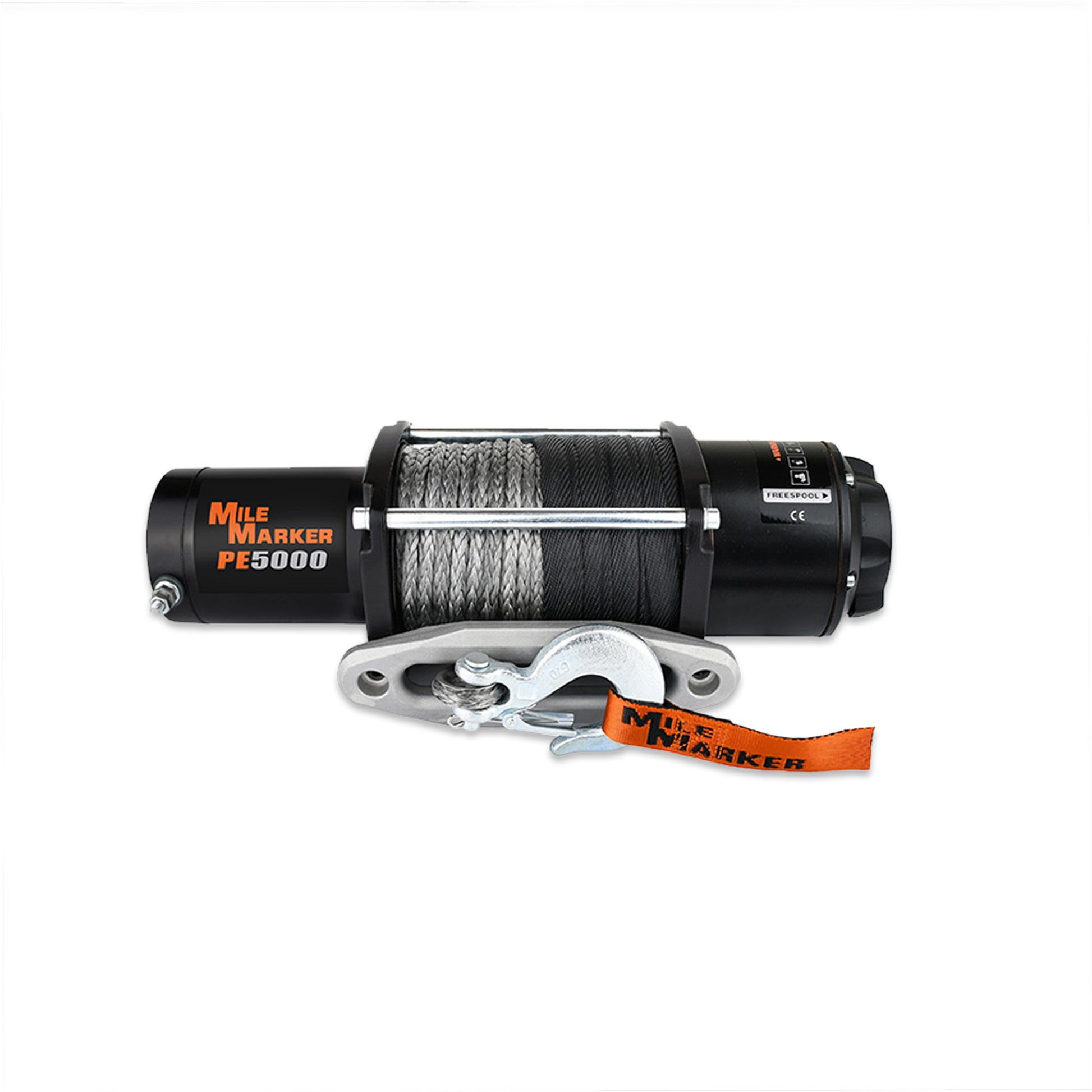

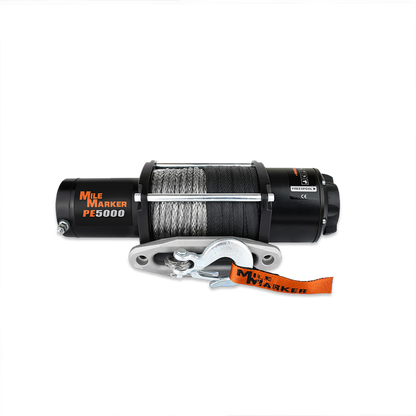

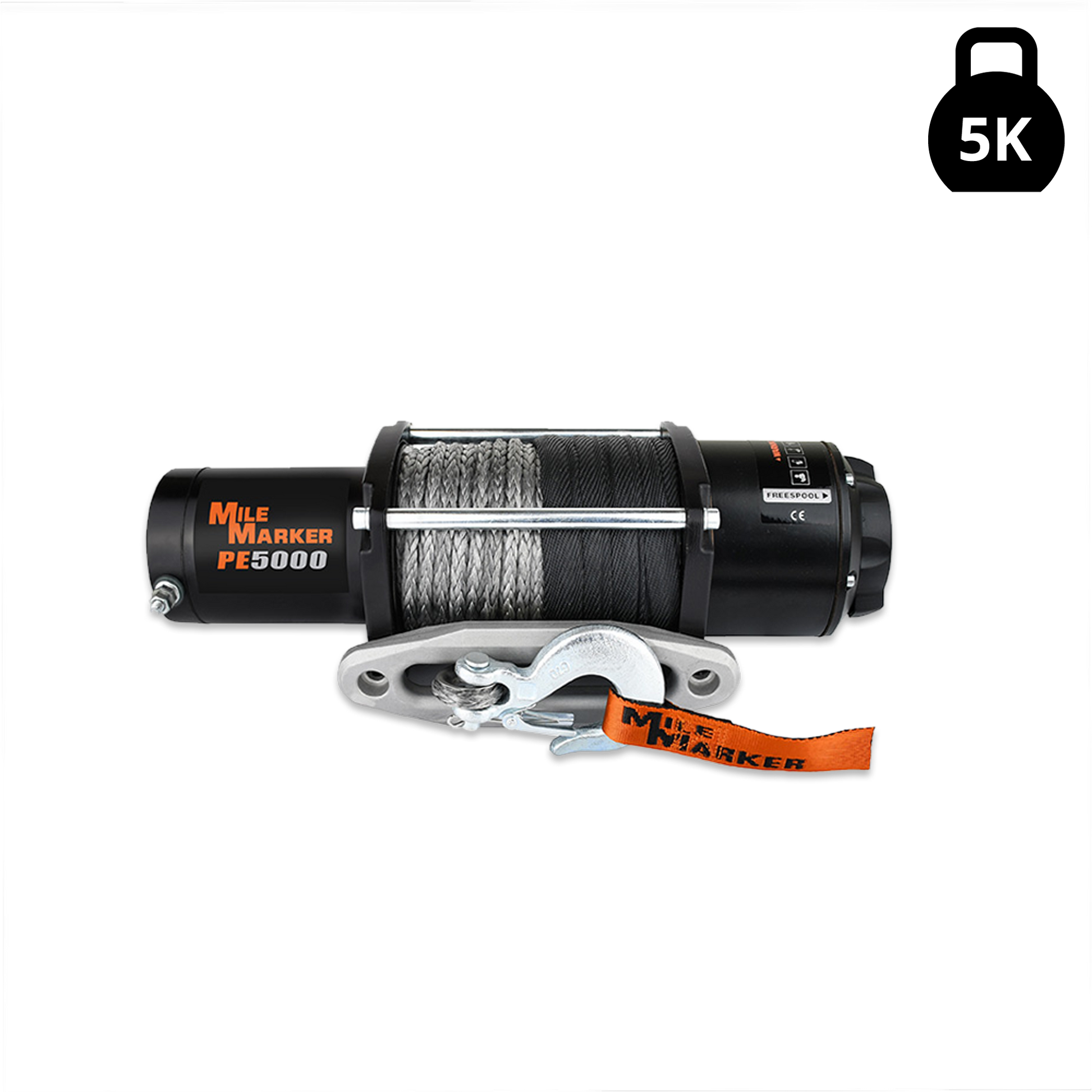

Synthetic Rope

• Part Number: 77-53120
• Rated line pull: 5000 lbs.
• Gear Train: 3 Stage Planetary
• Gear Ratio: 165:1
• Motor: 12 Volt DC, input power 3.8hp (2.8 kw)
• Remote Control: Power-In, Power-Out Remote
• Synthetic Rope: 1/4” X 50’
• Drum Size: 2.01″ X 5.4″ (51.1 mm X 137.16 mm)
• Net weight (Cable): 19 lbs. (8.6 kg)
• Bolt Pattern: 4 Bolt pattern, 3″ X 6.61″ (79 mm X 168 mm)
• Dimensions (LxWxH): 15.62″ X 4.61″ X 4.72″ (397MM X 117 mm X 120 mm)

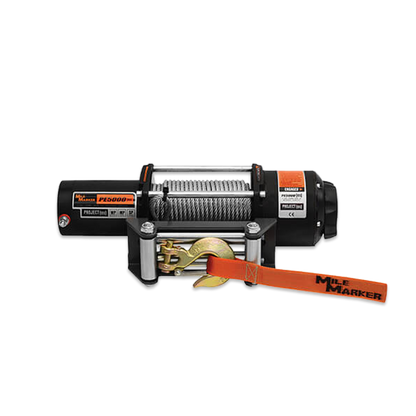

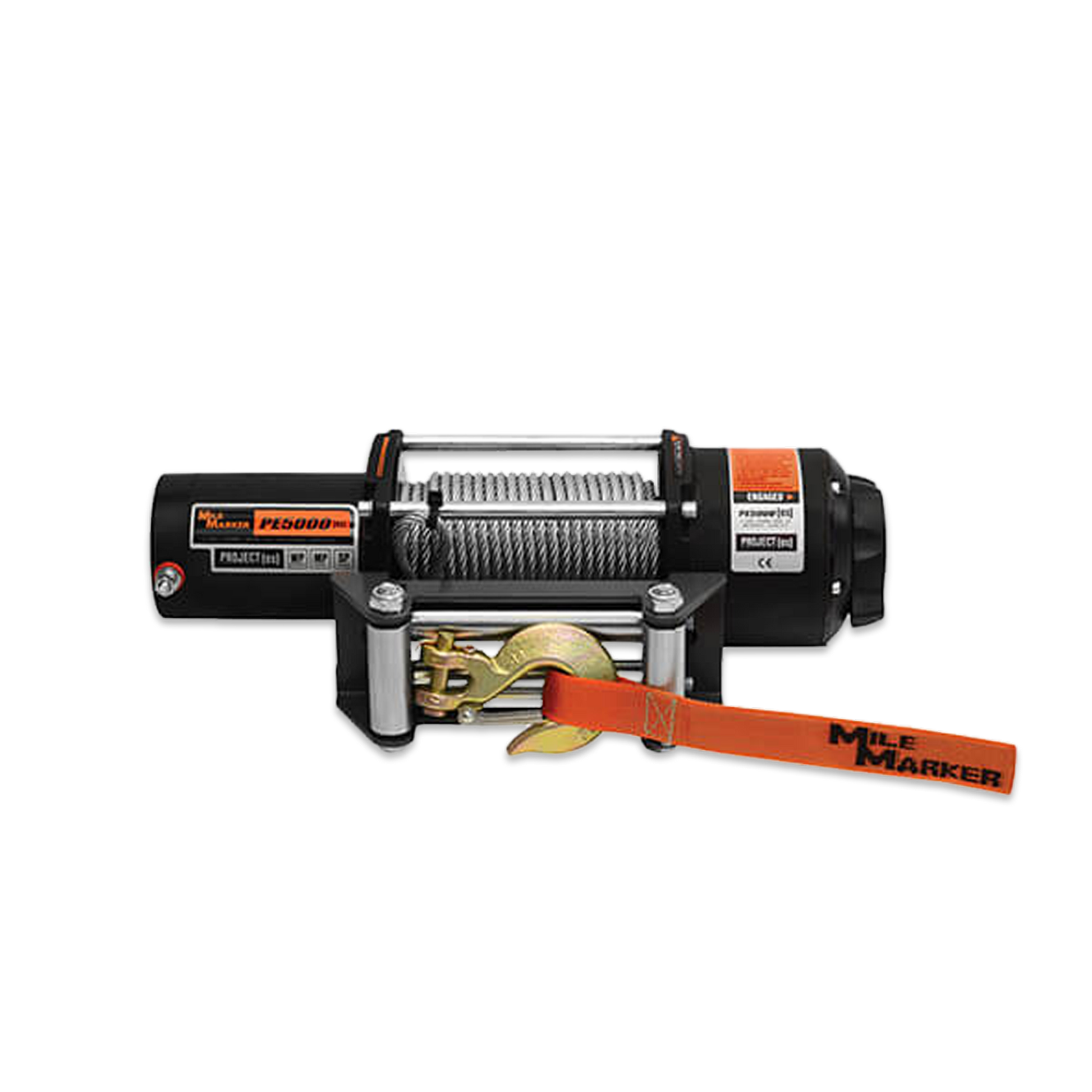

Steel Cable

• Part Number: 77-50120
• Rated line pull: 5000 lbs.
• Gear Train: 3 Stage Planetary
• Gear Ratio: 165:1
• Motor: 12 Volt DC, input power 3.8hp (2.8 kw)
• Remote Control: Power-In, Power-Out Remote
• Steel Cable: 1/4” X 50’
• Drum Size: 2.01″ X 5.4″ (51.1 mm X 137.16 mm)
• Net weight (Cable): 24 lbs (10.8 kg)
• Bolt Pattern: 4 Bolt pattern, 3″ X 6.61″ (79 mm X 168 mm)
• Dimensions (LxWxH): 15.62″ X 4.61″ X 4.72″ (397MM X 117 mm X 120 mm)

Manual: Mile Marker Industries PE5000 UTV Winch Manual
