1 1

Mile Marker Industries

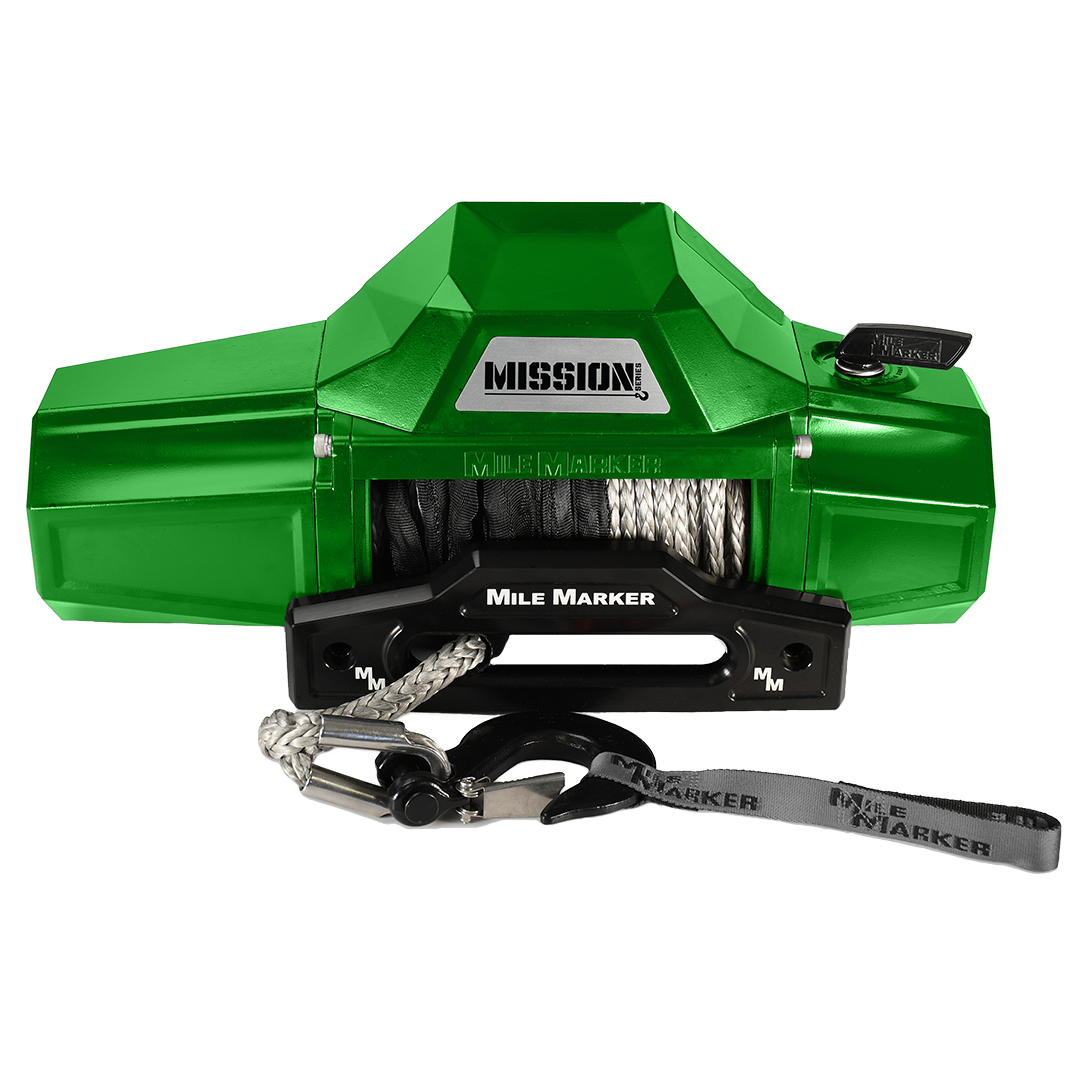

Mission Winch Series 10k - Scream Green

Mission Winch Series 10k - Scream Green

$1,249.00
$1,249.00
Sale Sold out
Shipping calculated at checkout.

sku-40543461081148
Interactive
Interactive
Description

Customized products can take an additional 4-6 weeks to ship.

Mission Series Winch

Mile Marker is proud to bring the Military grade 12-volt electric winch – known as the Mission Series Winch - to your truck, SUV, Jeep, or Bronco! The US Military has trusted our 12v electric winch for over a decade and now you can own one - fully customized for the best look! The Mission Series winch is the #1 winch to get you unstuck. With easy-to-operate mechanics & an optional wireless remote, you can't go wrong with a Mission Series winch on your vehicle. Attaching the Mission Series winch to your vehicle has never been easier with our standard 4-bolt pattern.

Fully Customizable

The Mission series is a completely customizable winch in three capacities, 8k, 10k, and 12k. There are 10 full coverage colors & 4 different patterns to choose from. We'll be adding even more colors & patterns to choose from in the future.

Build Your Winch. Your Way.

There are the following customization choices for the perfect design:

  • Body color
  • Hook color
  • Rope colors

Features

All Mission Series winch models have the following features:

  • Fully submersible
  • Automatic load holding/low friction brake
  • Rugged heavy-duty solenoid
  • 92' synthetic rope
  • Aluminum hawse fairlead
  • Military-grade drum
  • Durable corrosion-resistant stainless accents
  • Plug & Play remote
California Residents see Prop65 Warnings WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Tech Specifications
Rated Line Pull 10000 lbs (4536 kg)
Gear Train 3 Stage planetary
Motor Series wound, 4.7 hp (3.5 kw),12 Volt, 24 Volt available
Remote Power in, Power out with 12’ cable (3.7 m)
Dimensions (LxWxH) 21.1” X 6.34” X 10.1” (535 mm X 161 mm X 255 mm)
Synthetic Rope 3/8” X 92’ (9.53 mm X 28 m) (18,078 lb. breaking strength)
Net Weight Synthetic Rope 57.8 lbs (26.2 kg)
Drum Size Diameter X length 2.64” X 8.35” (67 mm X 212mm), hardened
Bolt Pattern 4 bolt pattern, 10” x 4.5” (254 mm X 114.3 mm)



User Manual



FAQ

A Mission custom winch order takes 4-6 weeks.
The mission winch only comes with Synthetic Rope. It is a 92’ synthetic rope and you have the option to change the color of the rope.
Yes, if you would like more information on the wireless remote go to this link.
The synthetic rope is 3/8 x 92'. With a breaking strength of 1 lb.
Yes, the Mission winch will still work when fully submerged.
We use a mile coat finish on the Mission winches.
Yes, the Mission Winch could either be 12v or 24v. To upgrade to the 24v please send us an email at info@milemarker.com or call us at 954-782-0604.
The bolt pattern is 4 bolt 10"x4.5" 254mm x 114.5 mm. It is the same for all our Mission Winches.
Ensure that all connections are tight from the hand remote to the connections on the motor.
If the problem still exists after checking all connections, contact Mile Markerinfo@milemarker.com or call us at 954-782-0604. To purchase replacement parts see our website.
You can find all the different colors on our website.
The hook, aluminum hawse fairlead, rope and of course the winch will be included in the box when you buy a mission winch. You can find a picture of everything that will be included on our website.
Click on our website here within this page you will see two tabs one is specs and the other one will be manual just click on the one that is needed.
