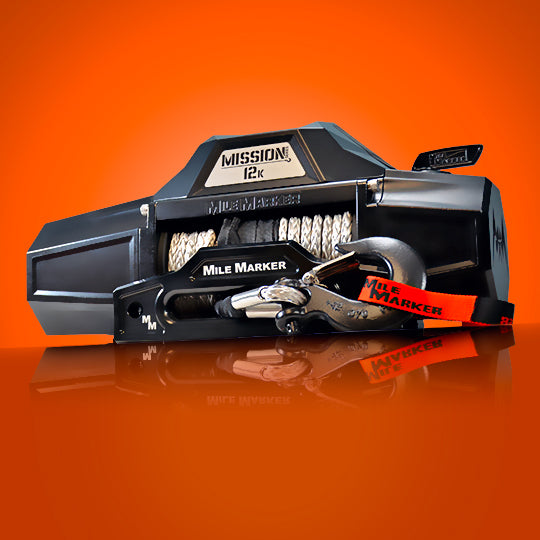

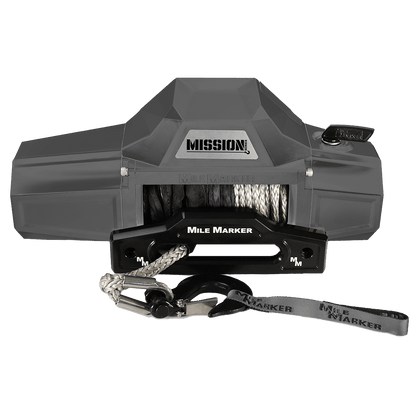

Mile Marker is proud to bring the Military grade 12-volt electric winch – known as the Mission Series Winch - to your truck, SUV, Jeep, or Bronco! The US Military has trusted our 12v electric winch for over a decade and now you can own one - fully customized for the best look! The Mission Series winch is the #1 winch to get you unstuck. With easy-to-operate mechanics & an optional wireless remote, you can't go wrong with a Mission Series winch on your vehicle. Attaching the Mission Series winch to your vehicle has never been easier with our standard 4-bolt pattern.

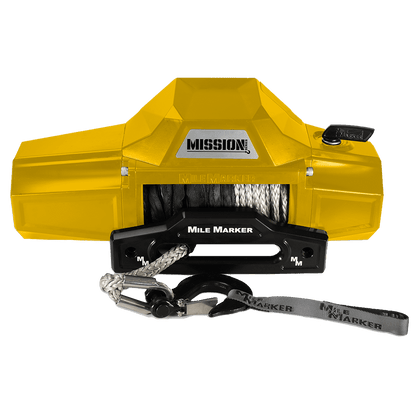

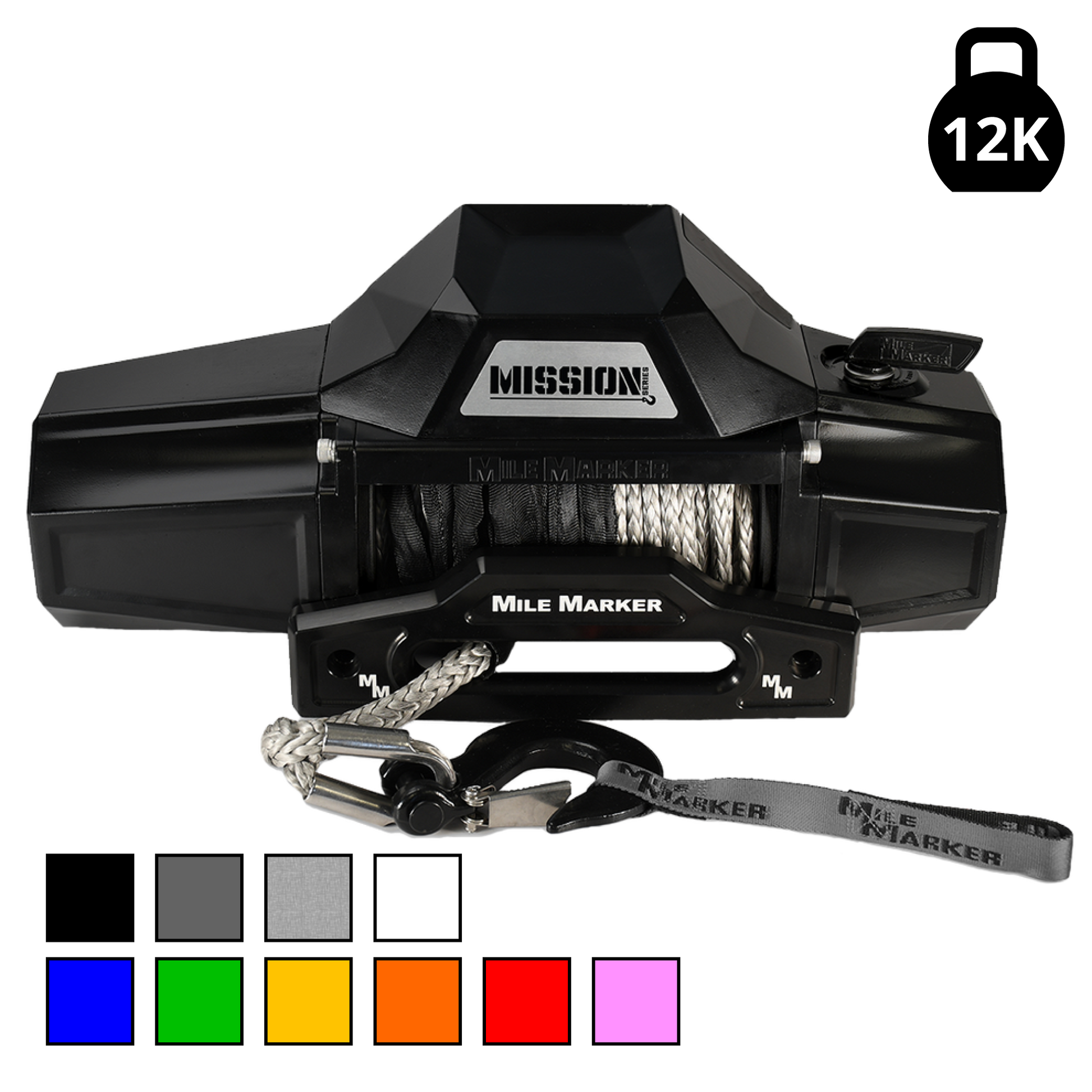

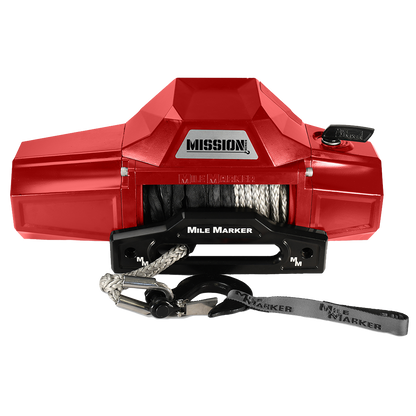

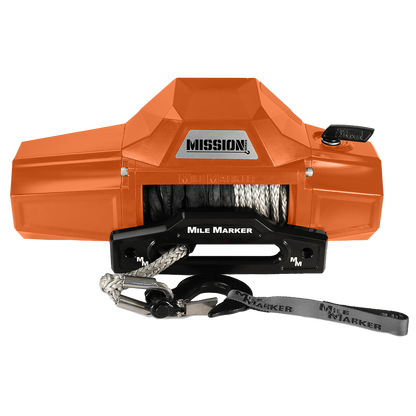

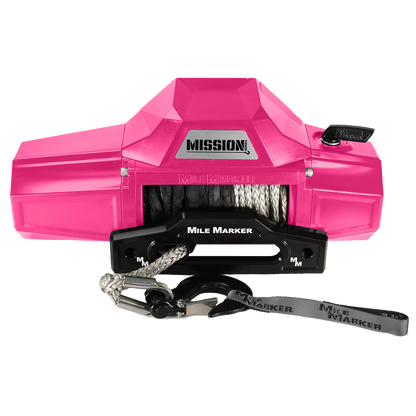

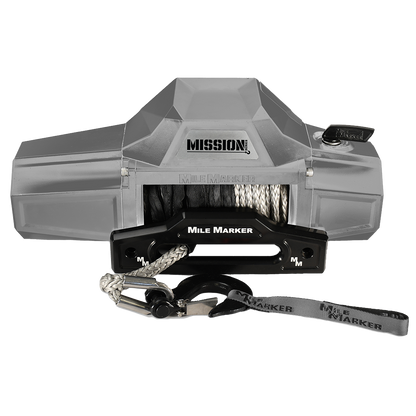

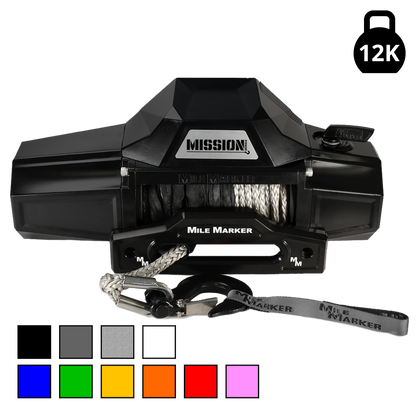

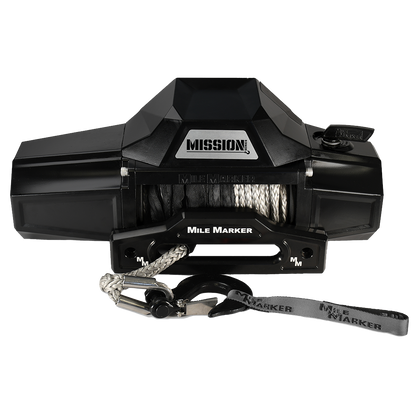

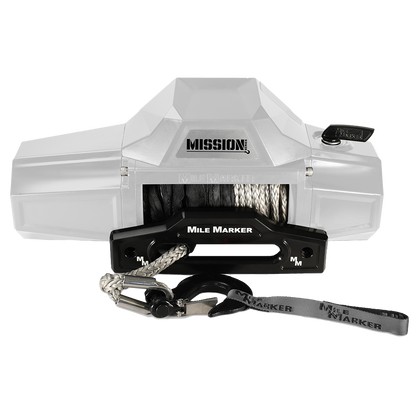

The Mission series are offered in 10 housing and rope colors for all capacities, 8k, 10k, and 12k. All Winches are shipped with a Covert Black clevis hook and Covert Black rope fairlead as standard but can be color matched to the housing color by request only. Please contact our sales team here.
Features
All Mission Series winch models have the following features:
Fully submersible
Automatic load holding/low friction brake
Rugged heavy-duty solenoid
92' synthetic rope
Aluminum hawse fairlead
Military-grade drum
Durable corrosion-resistant stainless accents
Plug and Play remote
Tech Specifications:
Rated Line Pull: 12000 lbs (5445 kg)
Gear Train: 3 Stage planetary

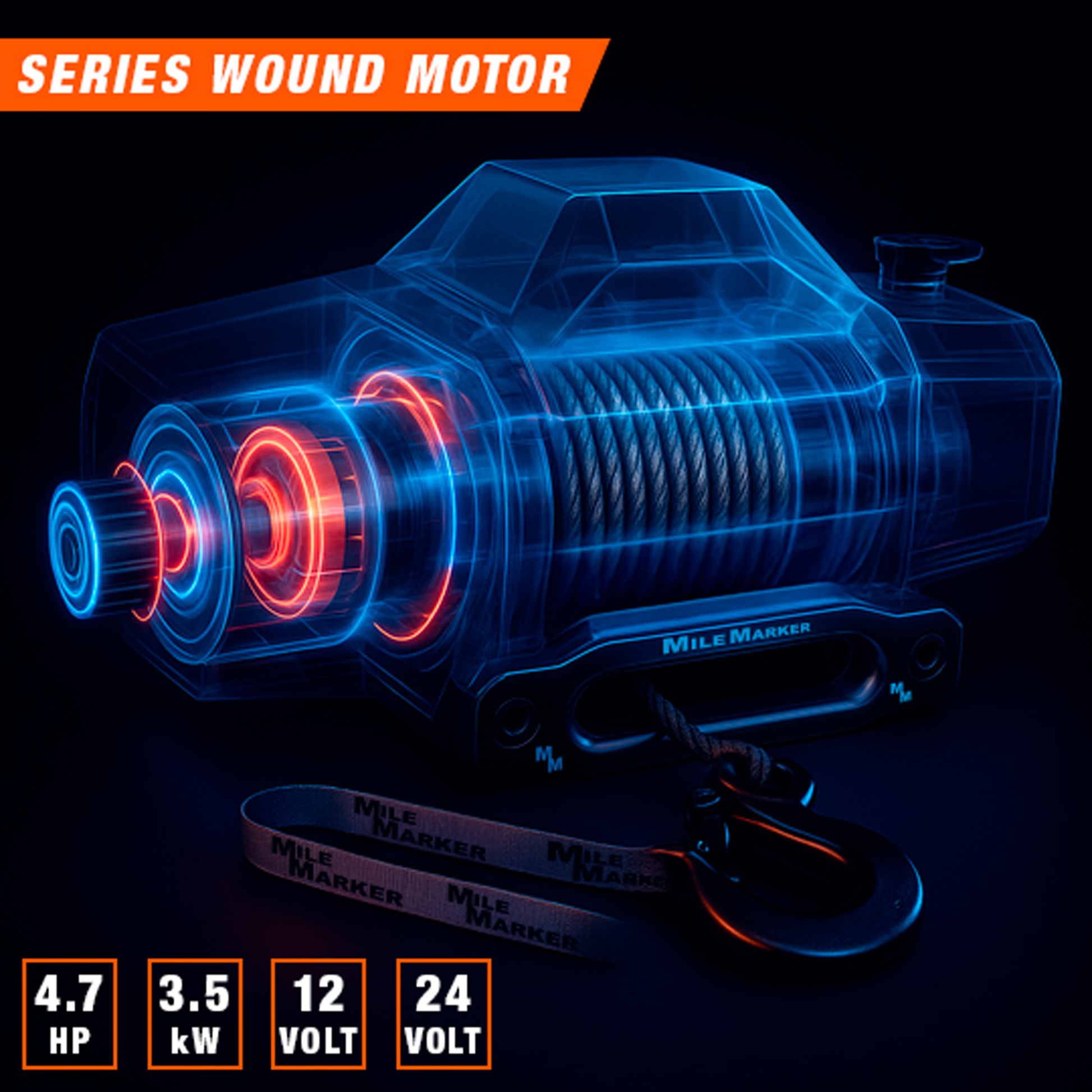

Motor: Series wound, 4.7 hp (3.5 kw),12 Volt, 24 Volt available
Remote: Wired Power in, Power out with 12’ cable (3.7 m). **Optional Wireless Remote Available Sold Separately
Dimensions (LxWxH): 21.1” X 6.34” X 10.1” (535 mm X 161 mm X 255 mm)
Synthetic Rope: 3/8” X 92’ (9.53 mm X 28 m) (18,078 lb. breaking strength)
Net Weight Synthetic Rope: 57.8 lbs (26.2 kg)
Drum Size Diameter X length: 2.64” X 8.35” (67 mm X 212mm), hardened
Bolt Pattern: 4 bolt pattern, 10” x 4.5” (254 mm X 114.3 mm)
