Jowl Split Shackle
Jowl Split Shackle
SKU:FN000026-004G
Couldn't load pickup availability
COMBINE TWO COLORS!!!! Purchase two different colors and combine the hooks from of each shackle to create 225 different color combinations to match your build. All colors sold as single shackles on this listing.

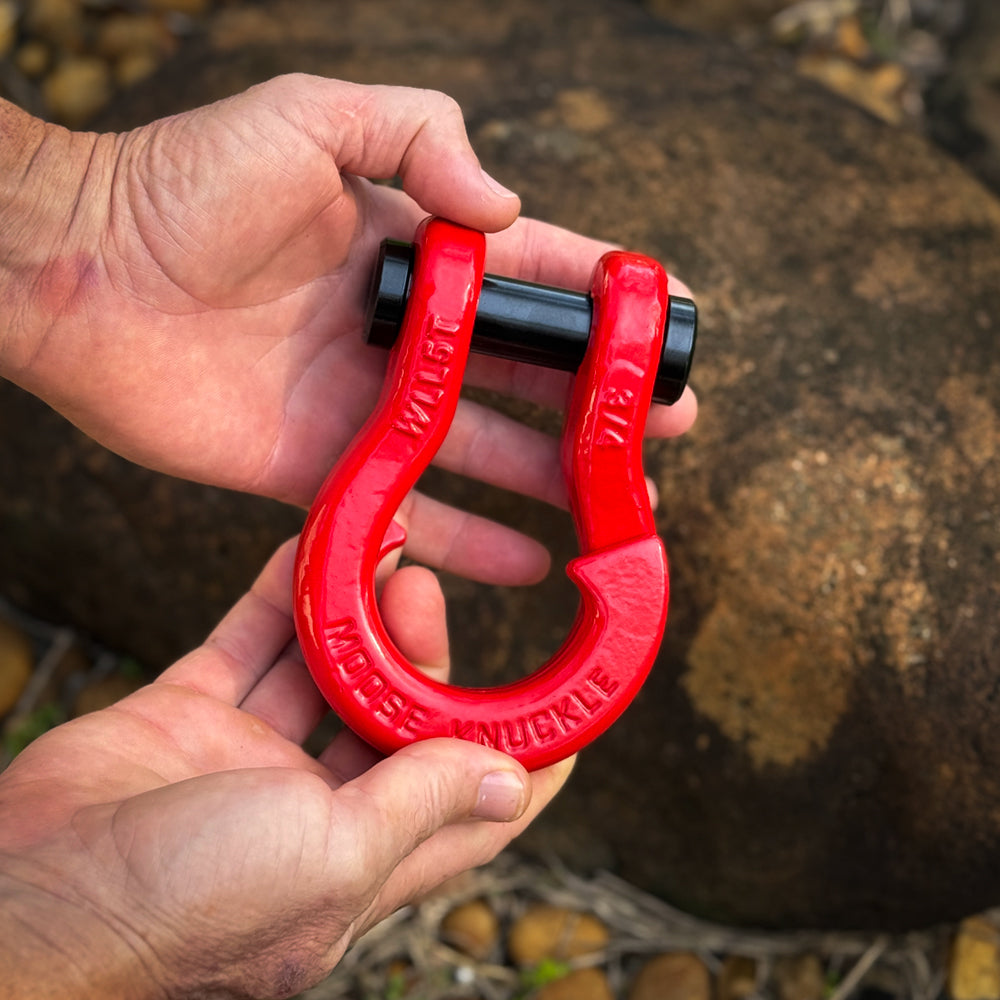

Introducing the "PATENTED" JOWL recovery split shackle. Our innovative split "J" recovery shackle design eliminates the need for tools or soft shackles while making rope and strap connections faster eliminating the need to remove your shackles from your bumper or hitch receiver to make a connection, hook up a rope, or strap out on the trail. Fast TOOL-LESS closed recovery finally made easy!!

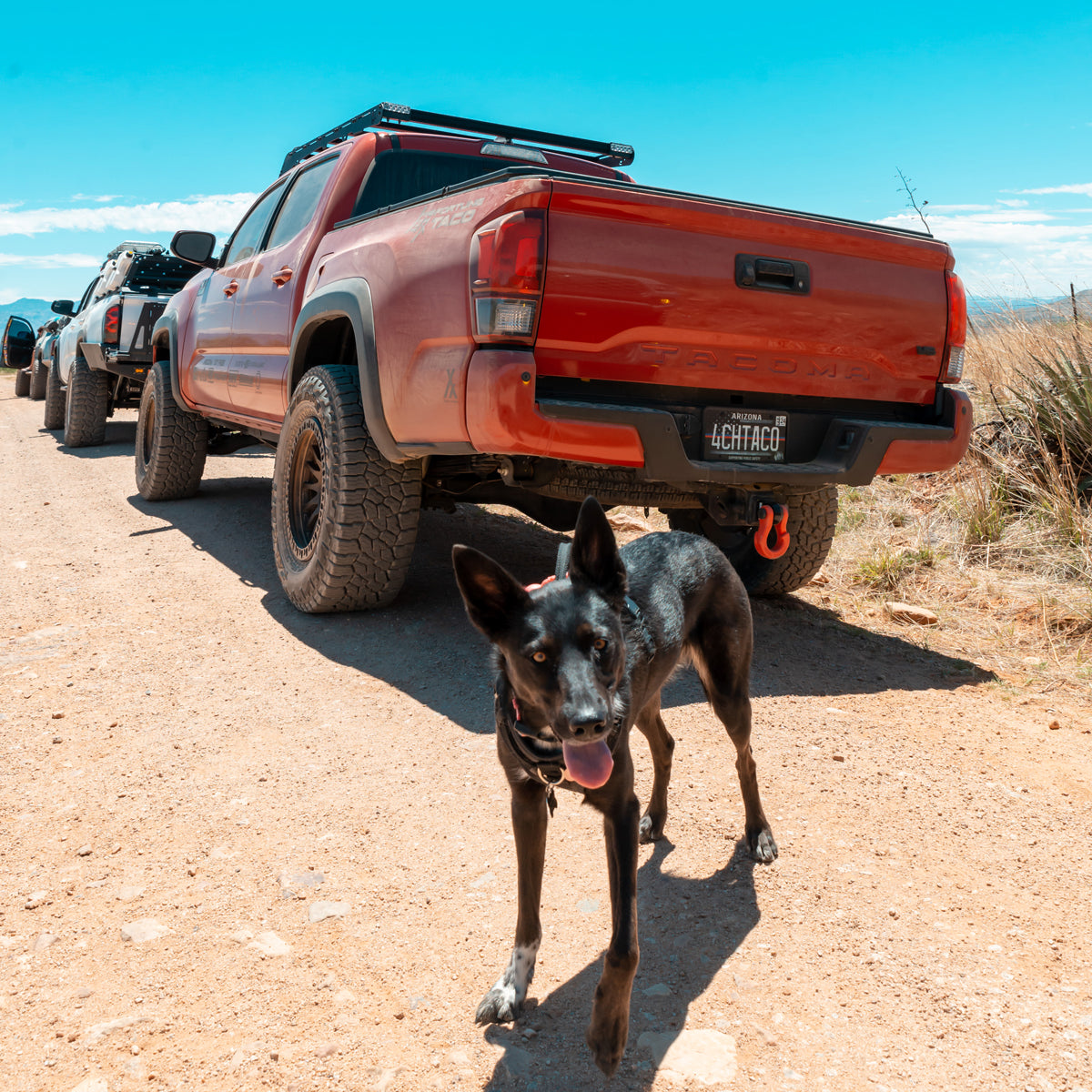

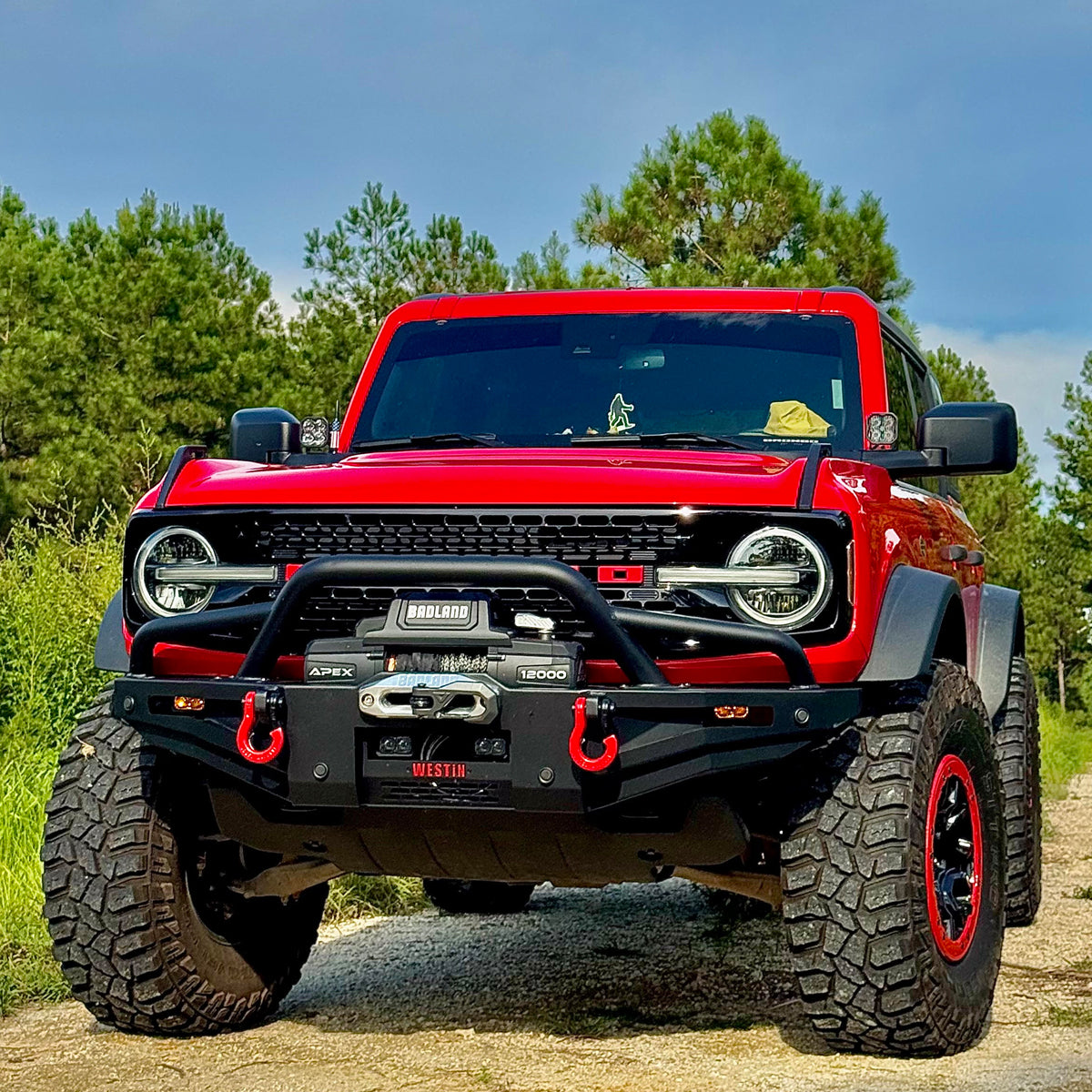

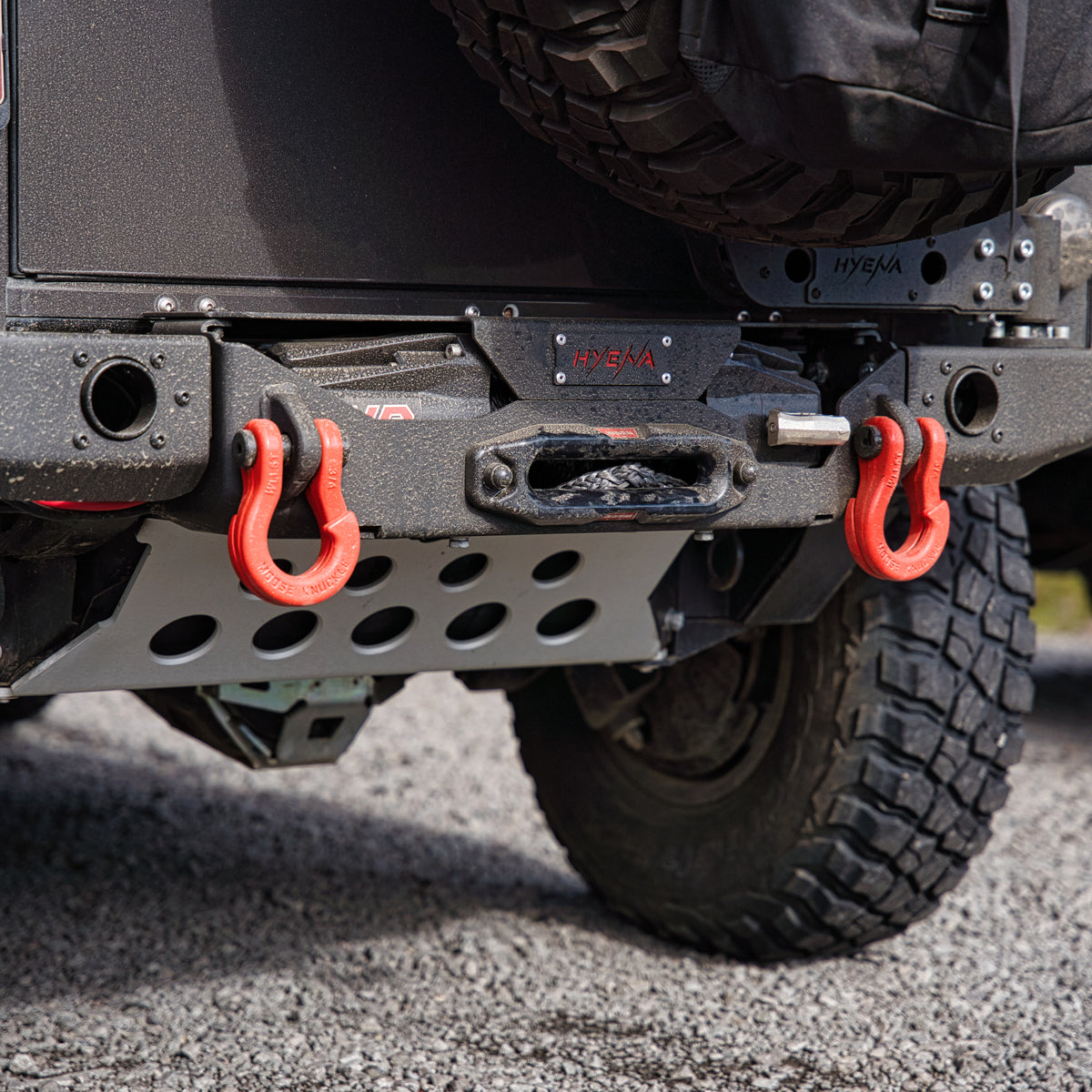

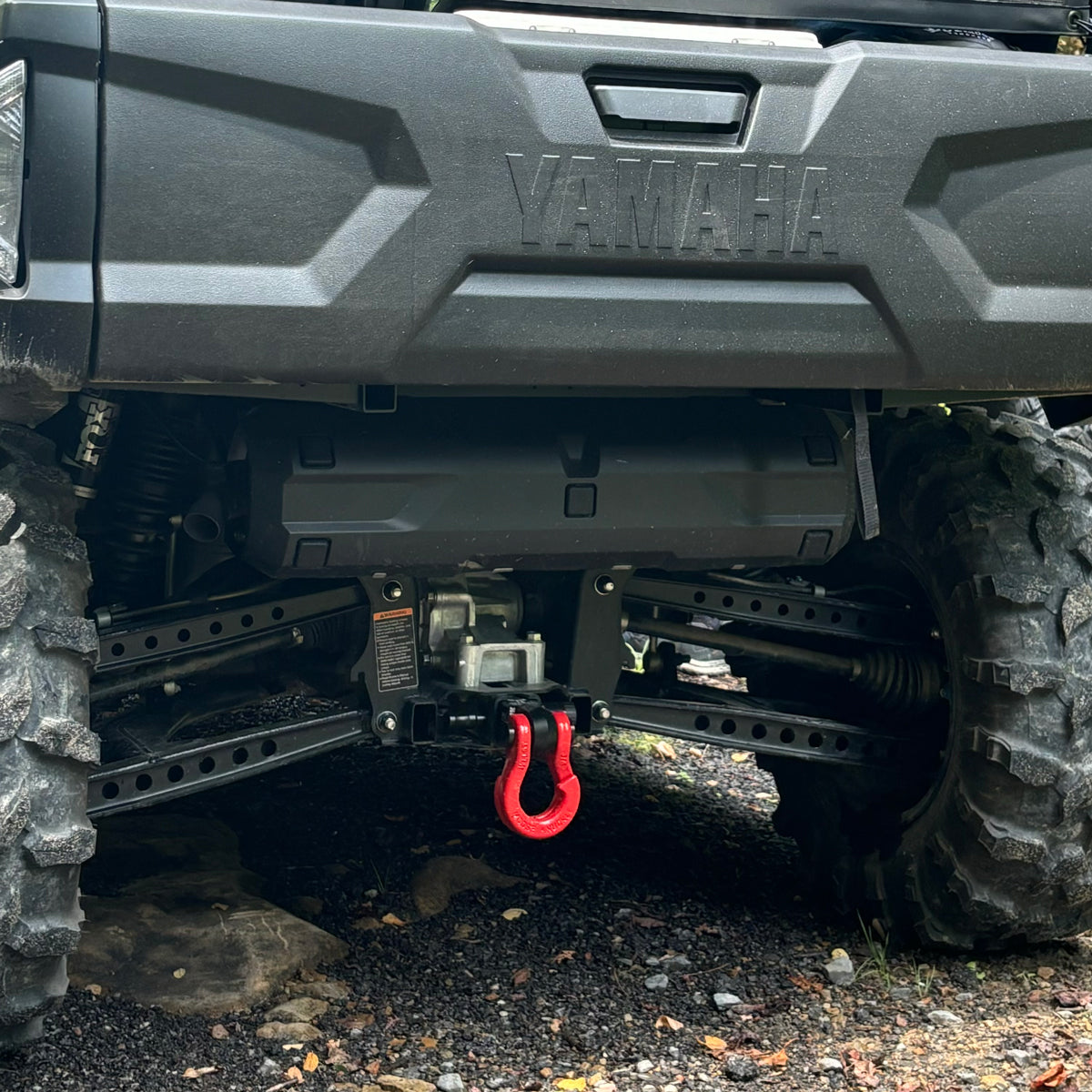

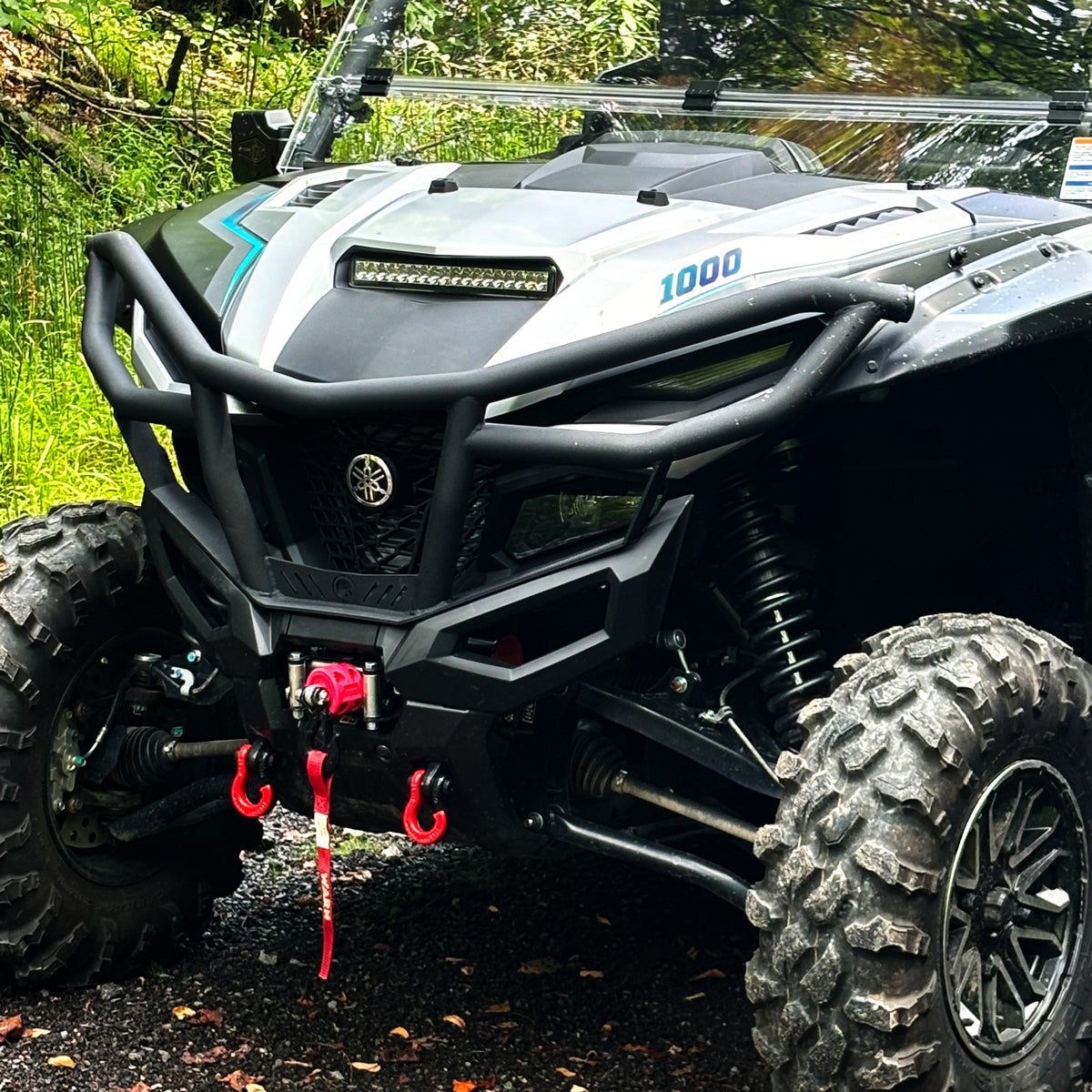

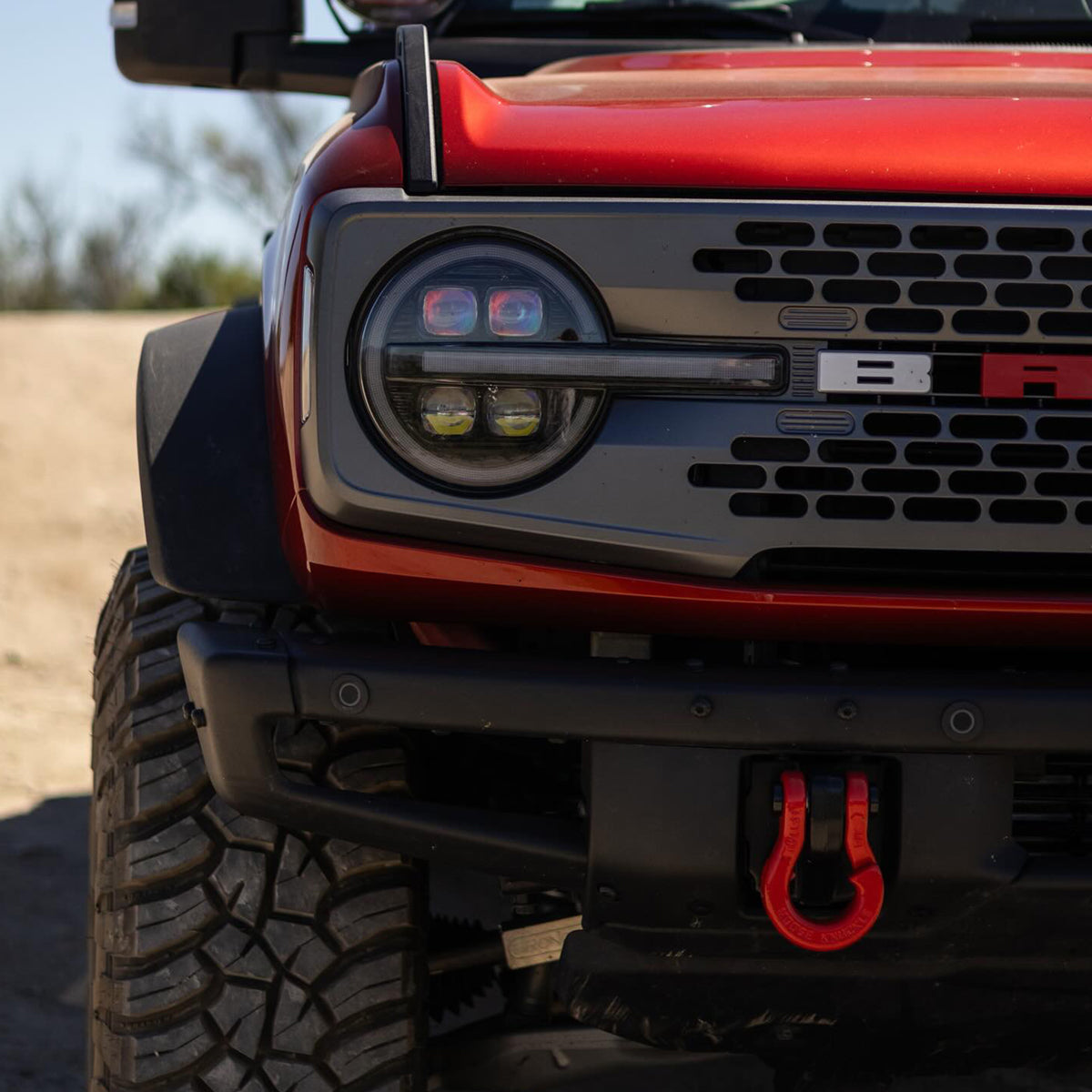

Four different size split shackles available to accommodate any size vehicle. Our smaller 1/2 and 5/8 size split shackles are great for powersports vehicles such as UTV's, SxS's, ATV's, Maintenance vehicles and golf carts. Our 5/8 size also crosses over to light SUV's, crossover sedans and light trucks. Our 3/4 shackles are great for Jeeps, Broncos, Tacomos, 4Runners, overlanding vans and full size trucks such as F-150's, Silverados and Ram 1500's. Our largest size split shackle is great for large lifted trucks, work trucks and utility vehicles such as F-250's and 350's, Ram Powerwagons, 2500's or 3500's. **See the shackle size reference image at the link below and images on this page.
THIS CHANGES EVERYTHING!

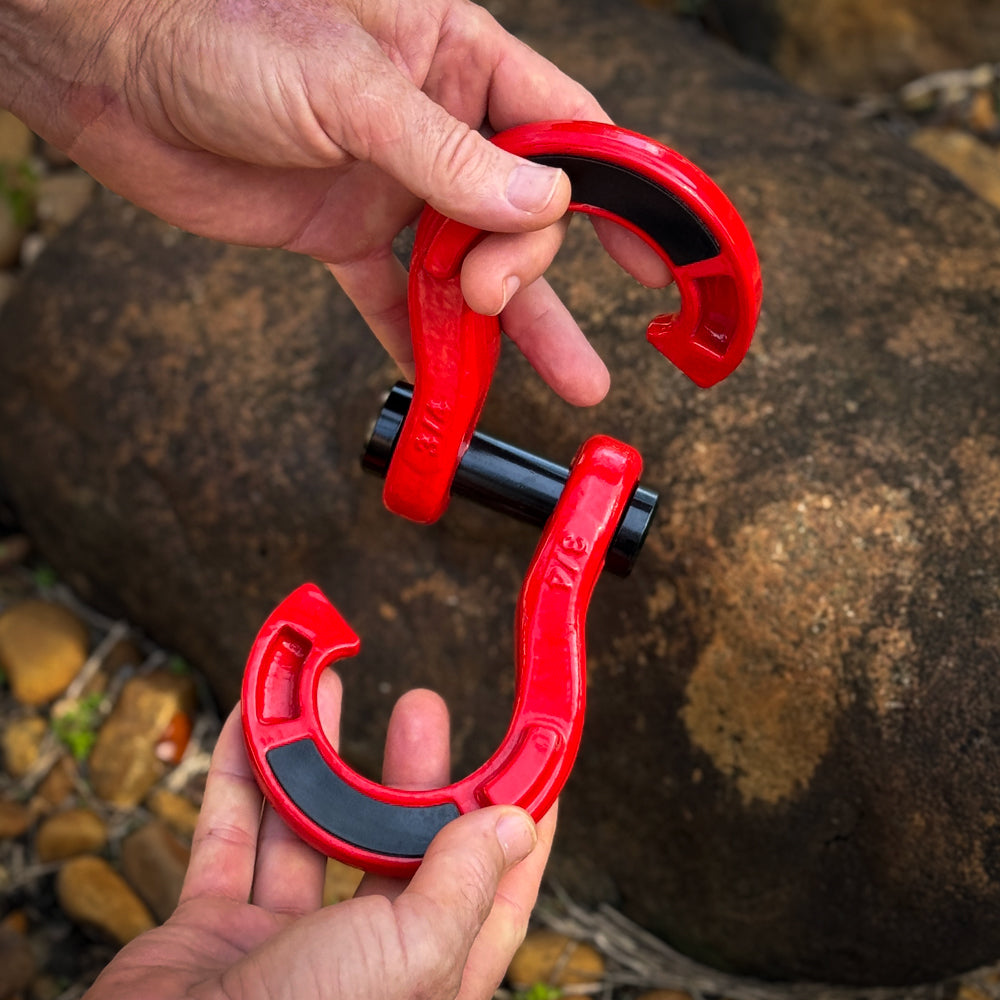

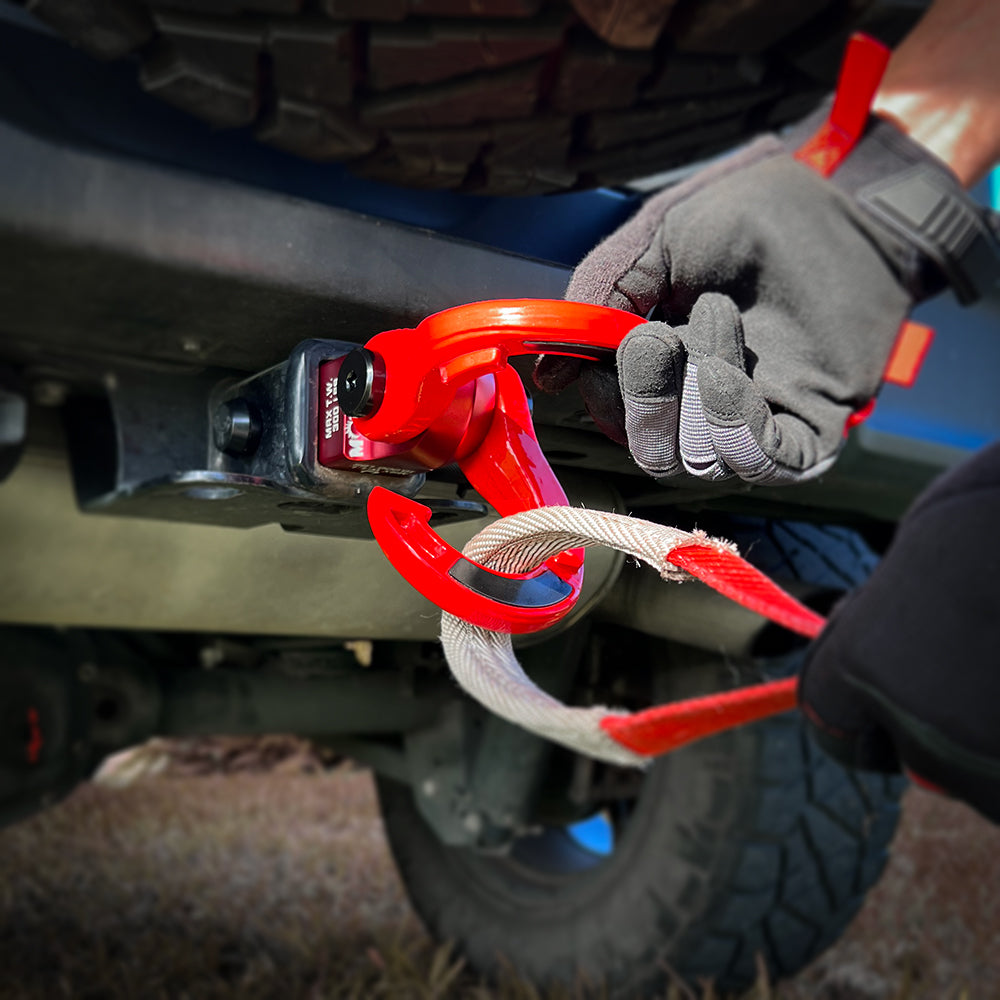

Just open up the Jowl shackle hooked sides, insert your recovery rope or tow strap looped end, rotate the end of the tow rope or strap to engage both sides of the shackle, pull tight and you are ready to recover your stuck vehicle.

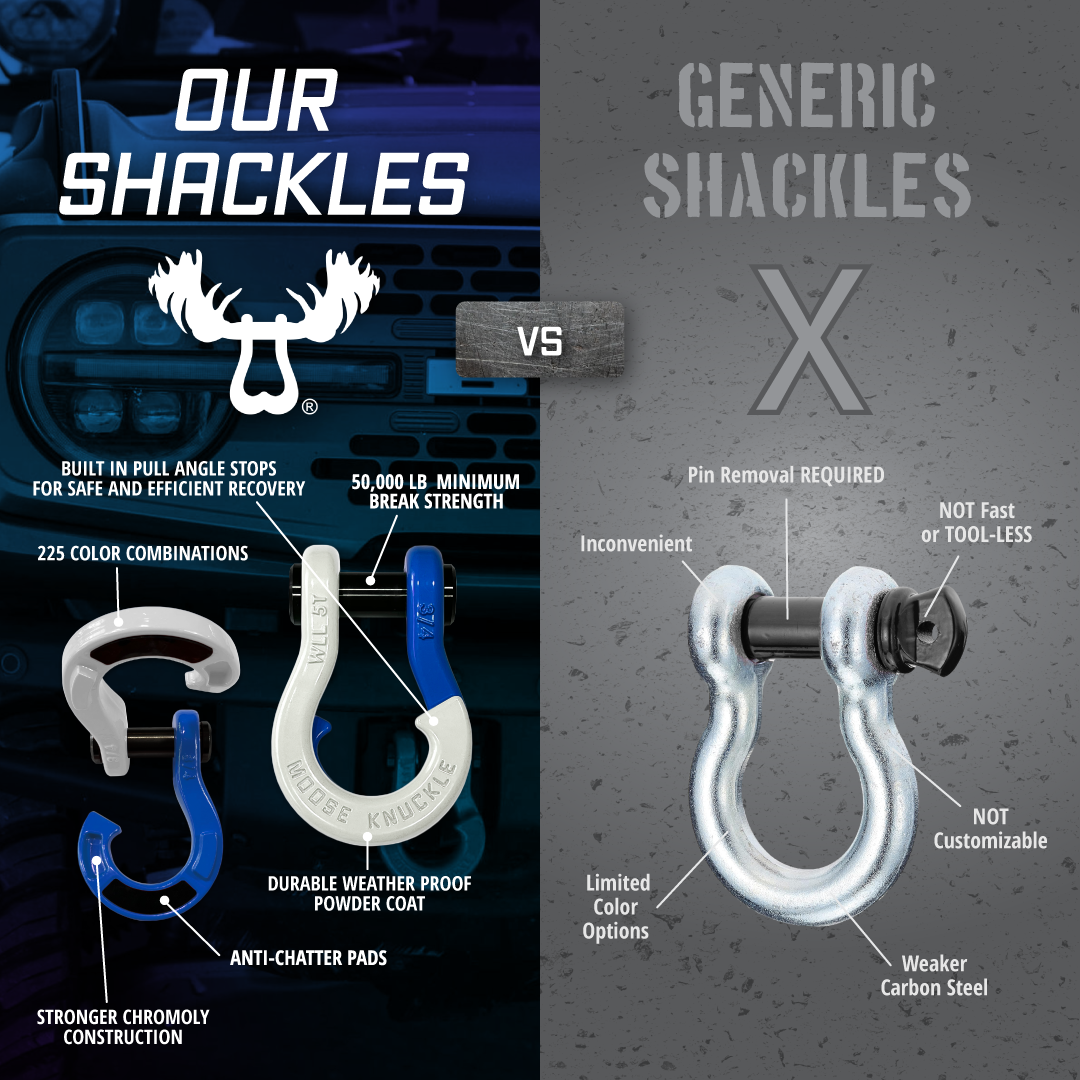

We designed the Jowl with a D-Ring shackle shape for those off-roaders who prefer a more traditional shackle look on their rigs. Built-in pull angle stops are visual reminders that give you feedback to help you keep your pull angles low keeping your recovery safe and as efficient as possible.

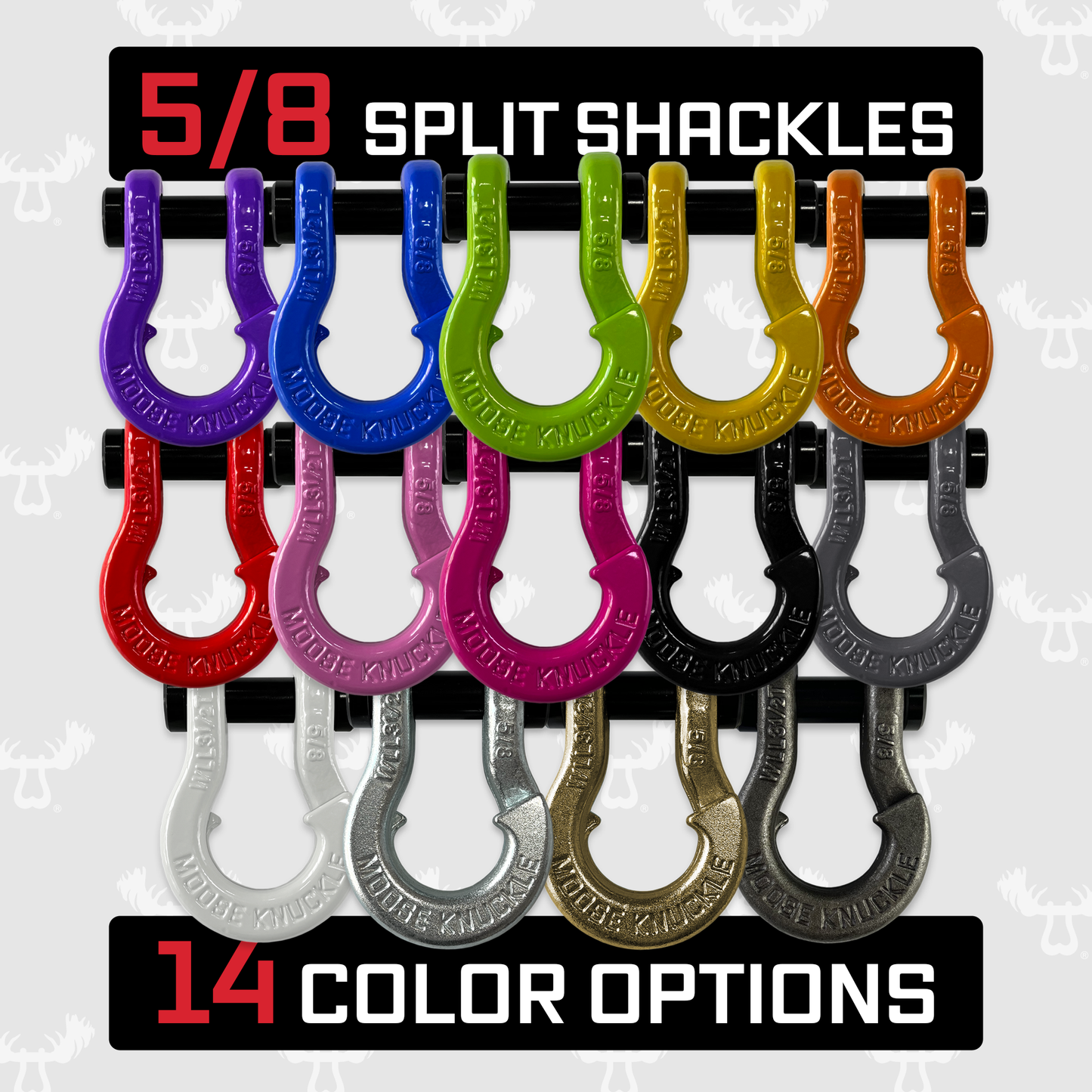

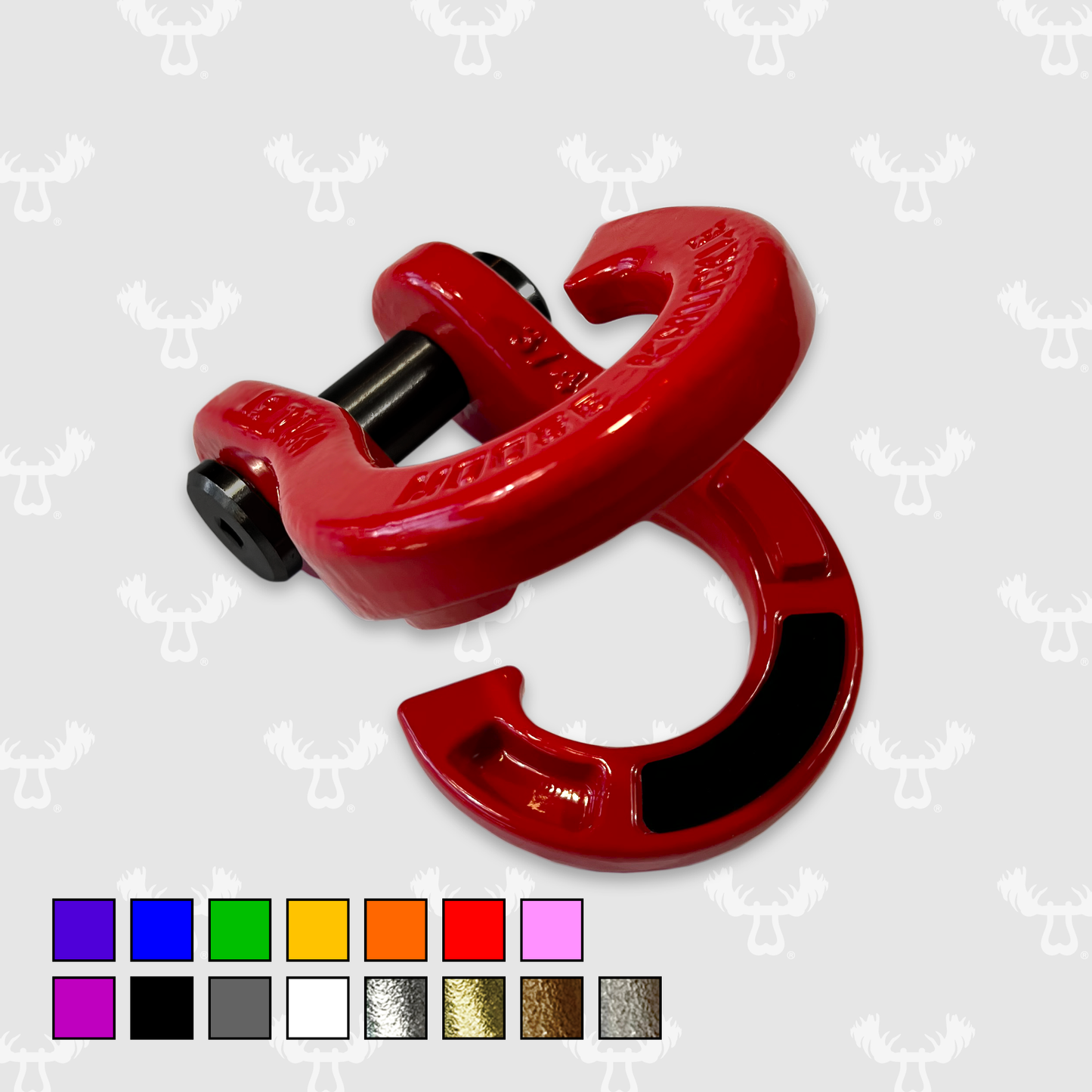

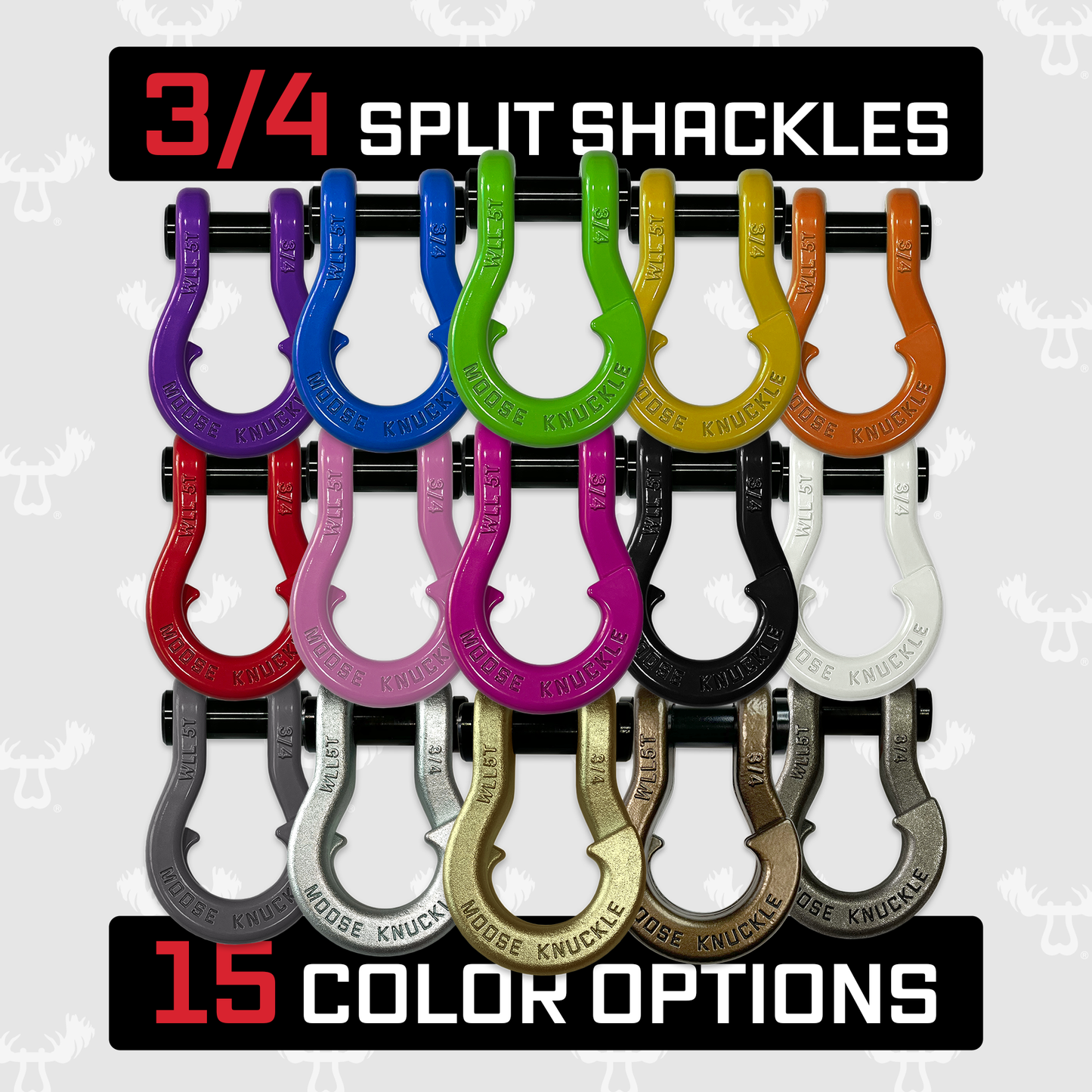

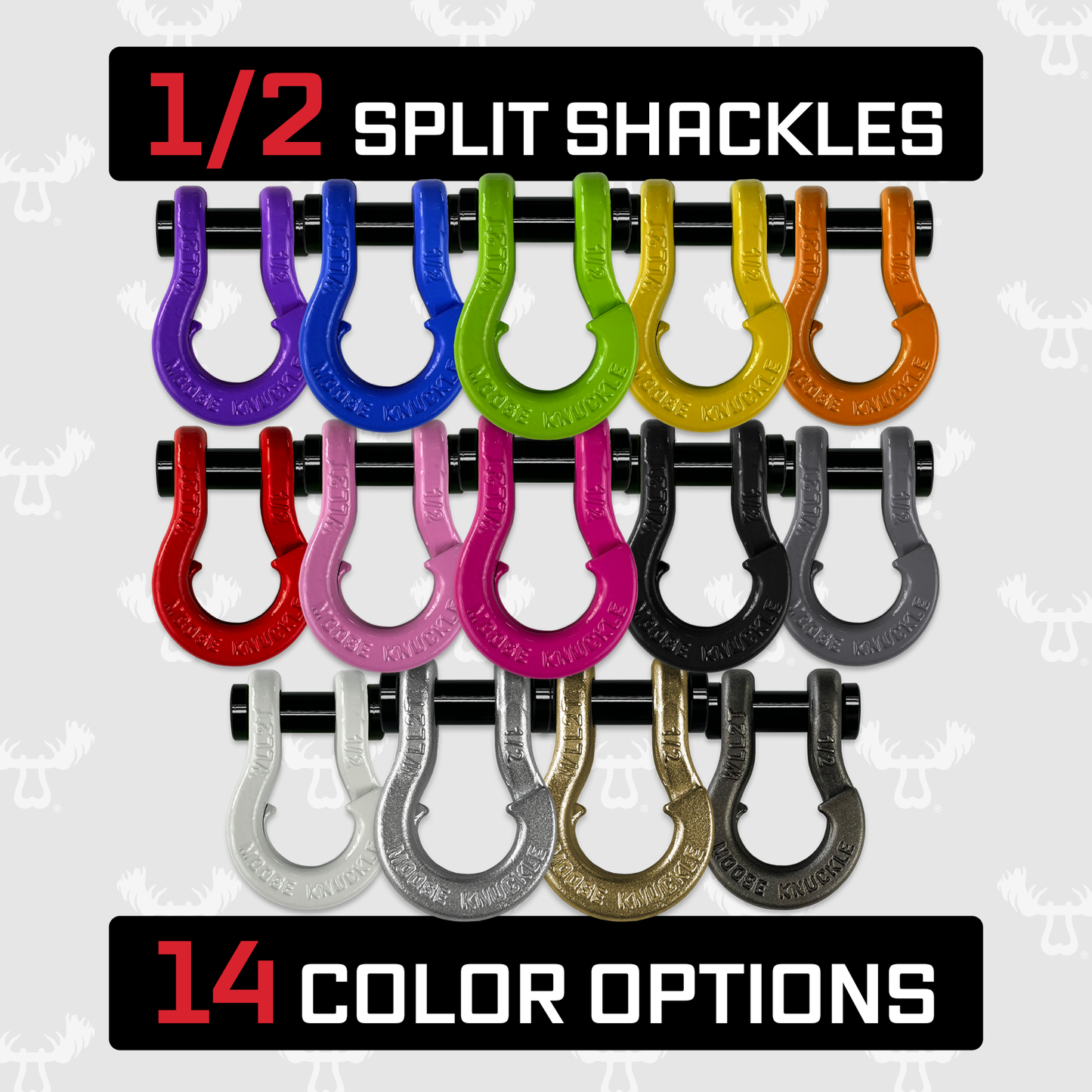

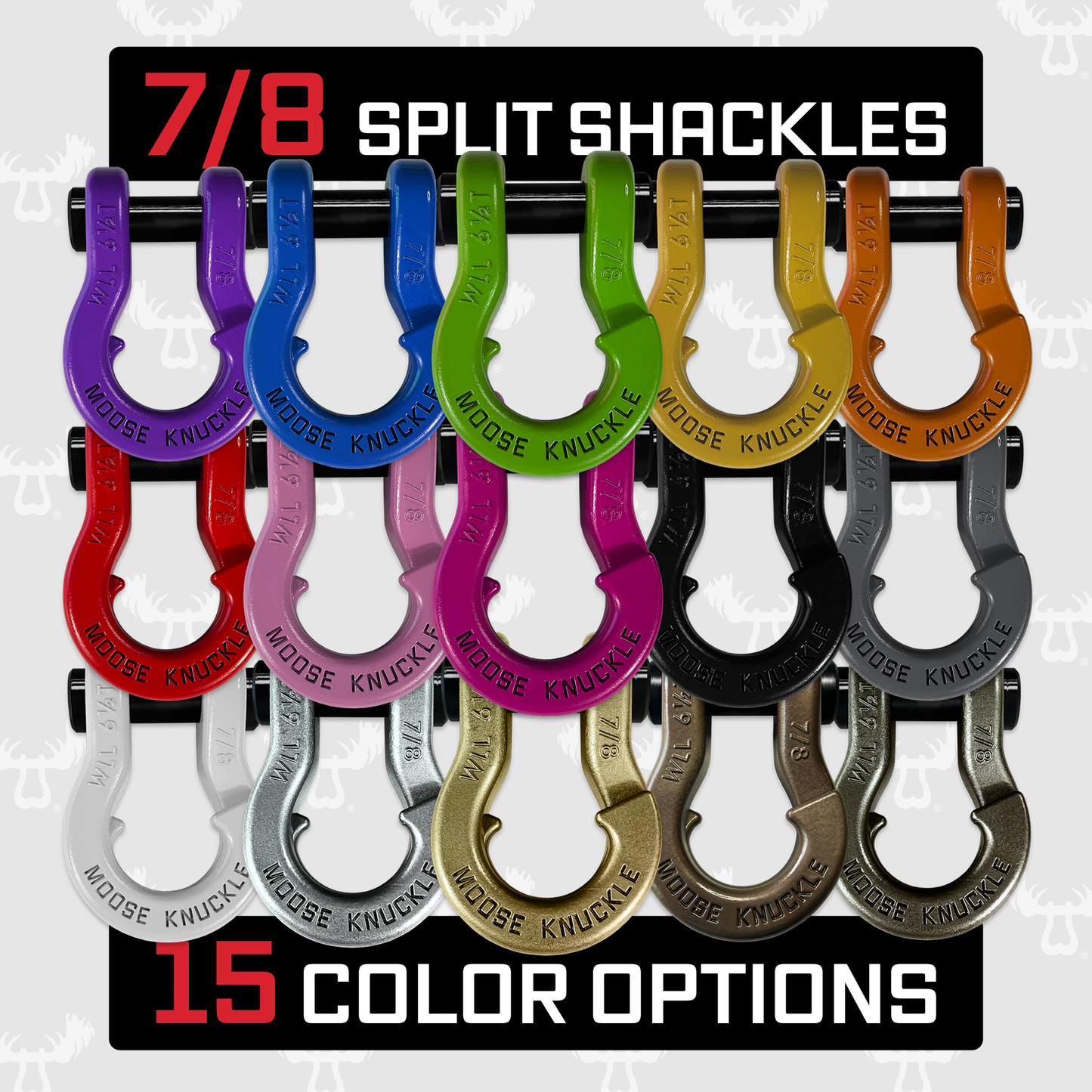

All color options are fully interchangeable. Buy two different color shackles and combine them to match the color scheme of your rig and give your build a more custom accented look. The hooked sides are fully covered with a durable powder coating pantone color matched to popular truck and Jeep colors. The shackle pin is Black Nickel plated and machined from High Strength Grade 8 Carbon Steel.
The forged chromoly steel shackle is guaranteed to speed up vehicle recovery so you can spend more time enjoying the trail instead of being stuck in it.

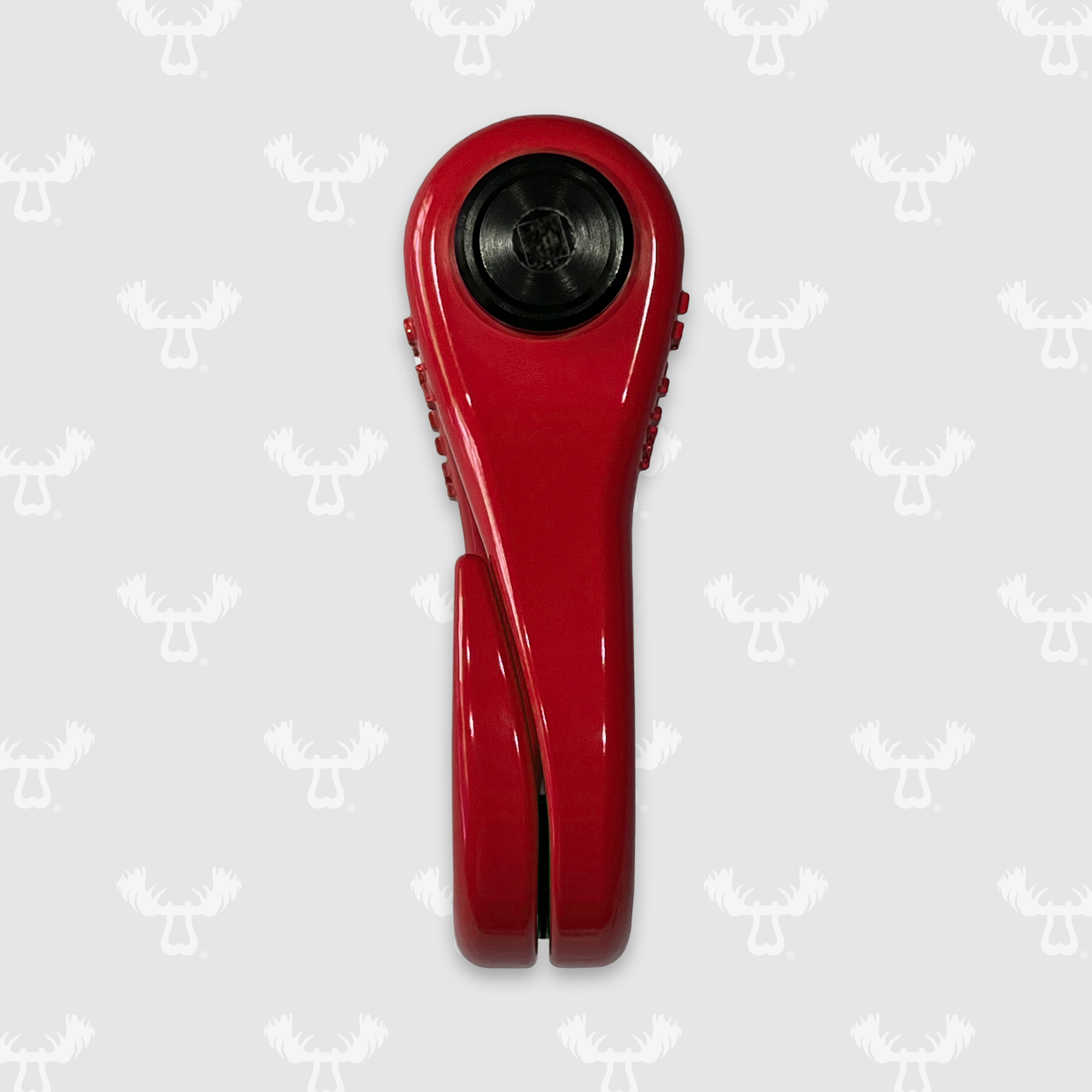

Built-in rubber anti-chatter pads stop the hooked sides from rattling against each other as you navigate the roughest trails.

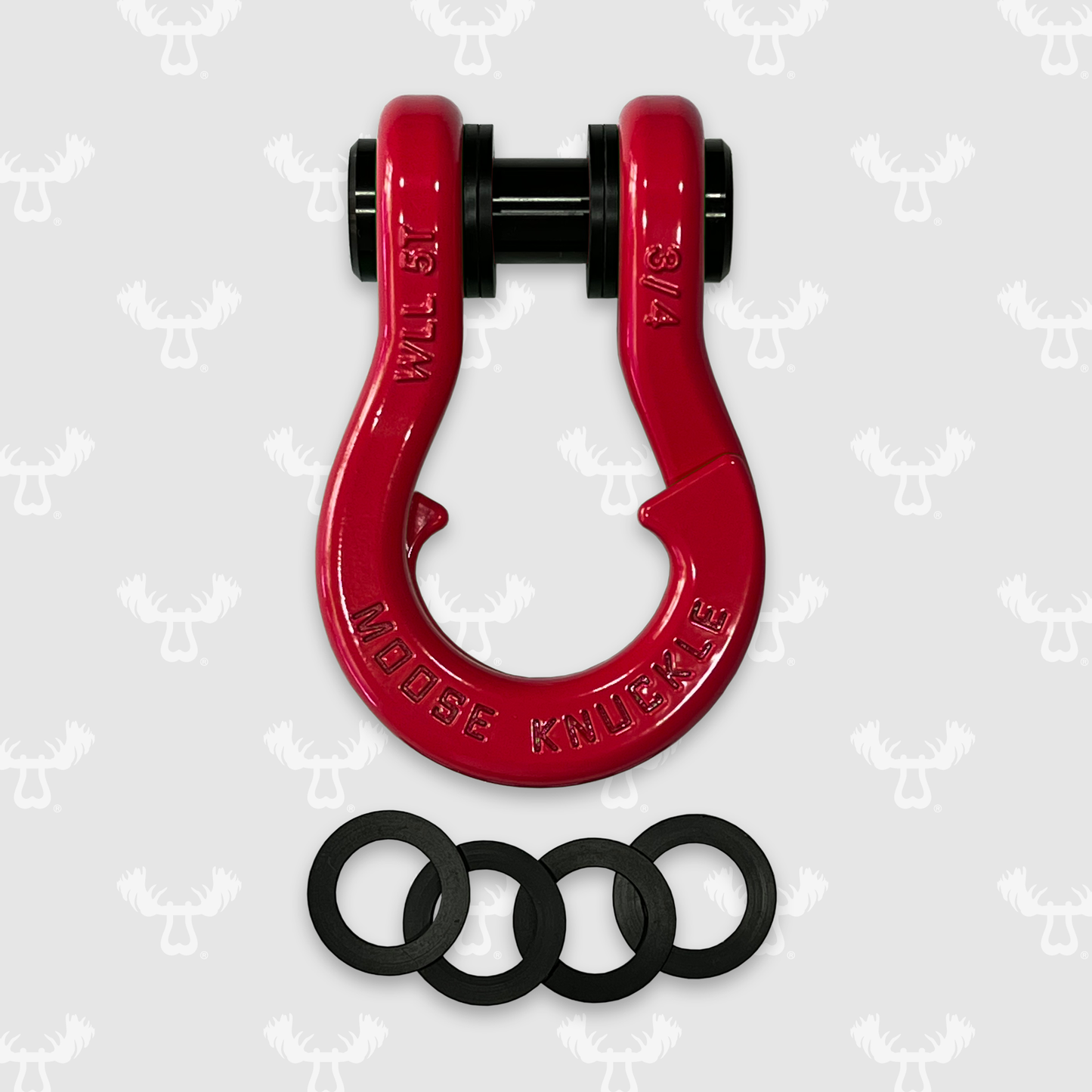

Each shackle includes four durable nylon shackle isolators. Two 3.0mm thick washers and two 2.0mm thick washers help you center your Jowl shackle on any width bumper shackle mount, gusset, winch rope, or shackle receiver.

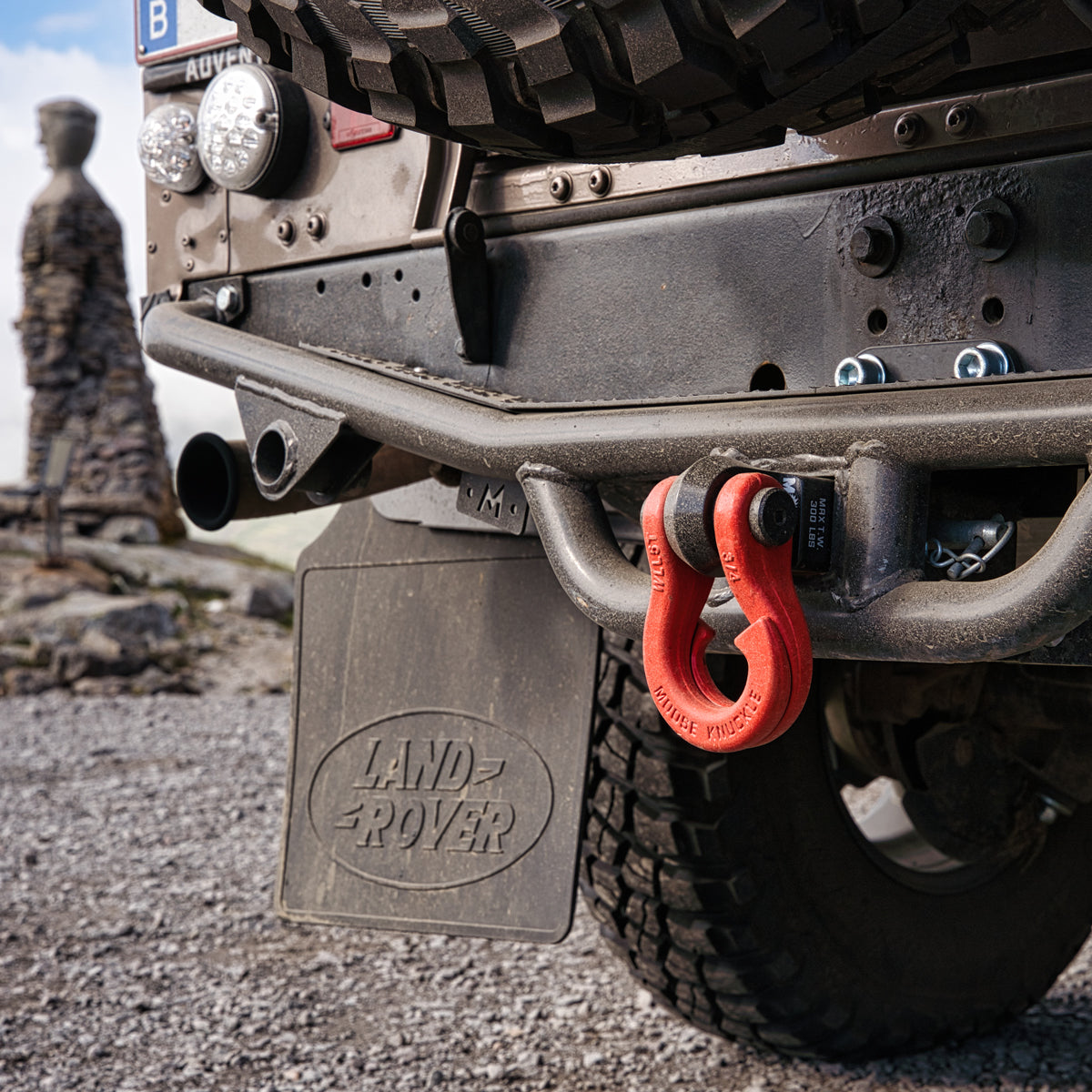

We made mounting the Jowl easy. The shackle pin is secured by two Metric threaded cap screws that accept any 1/4" socket wrench (3/8" socket wrench on our 7/8 size). Just grab two 1/4 inch ratchets and easily remove or attach the shackle to your vehicle without the need to find the correct allen keys or hex wrenches out on the trail. (Bonus: only one screw needs to be removed to attach or remove the shackle from your vehicle adding to the speed and functionality of this design.) Two 6mm Hex to 1/4" square drive adapters are also included with each Jowl 1/2, 5/8 and 3/4 split shackle for easy installation. For our 7/8 size split shackle two 6mm Hex to 3/8" square adapters are included.

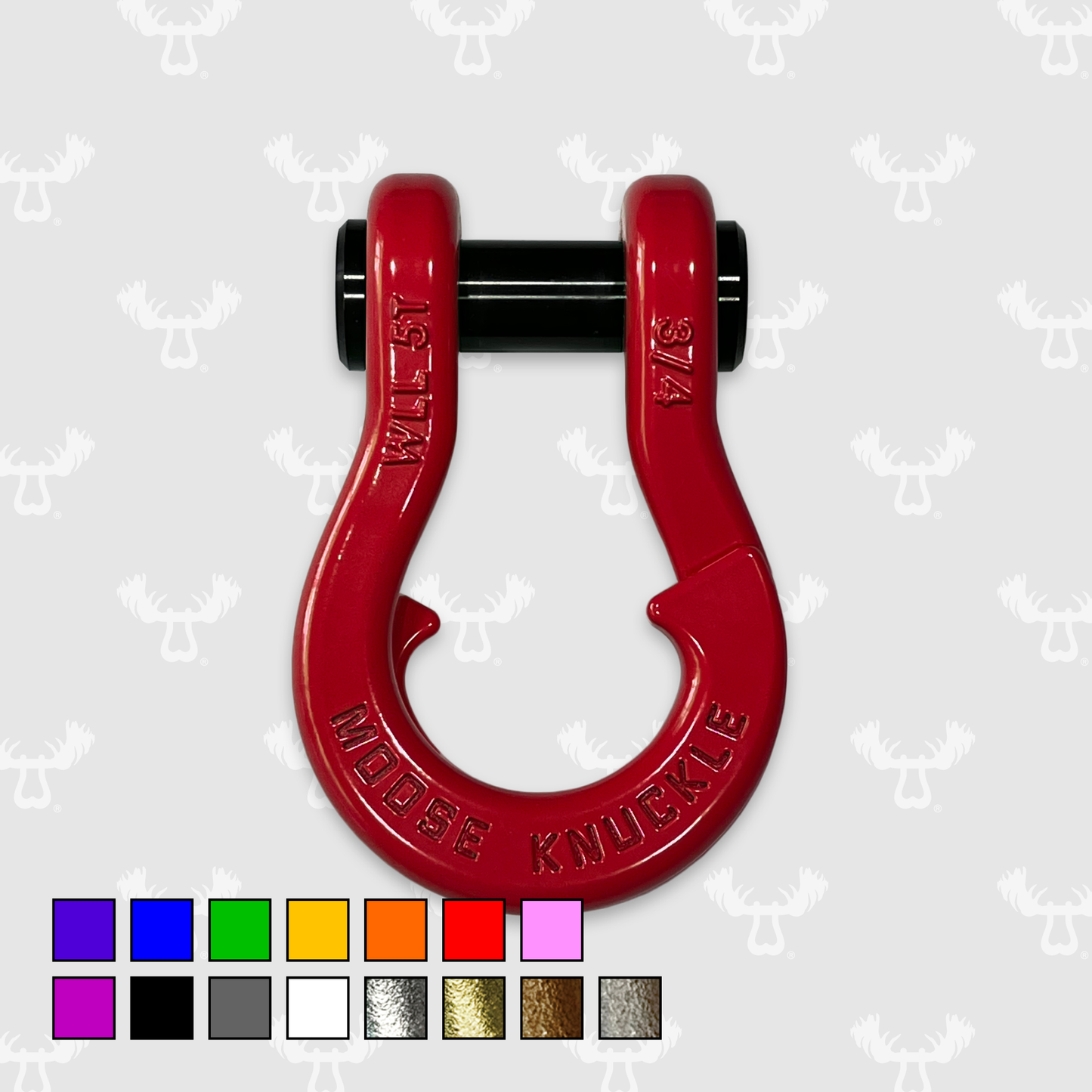

Single Colors are sold as one shackle (This listing is NOT SOLD AS PAIRS)
Black Hole - 100% Black
Gun Gray - PMS 425C
Pure White - 100% White
Grape Escape - PMS Purple C
Blue Balls - PMS 2728C (Jeep)
Sublime Green - PMS 368C (Jeep)
Detonator Yellow - PMS 7549C (Jeep)
Obscene Orange - PMS 165C (Jeep)
Flame Red - PMS 1795C (Jeep)
Pretty Pink - PMS 7423C
Pogo Pink - RAL 4010
Nice Gal - Galvanized
Brass Knuckle - Yellow Zinc
Buff Bronze - Bronze Powder Coated
Raw Dog - Uncoated (See warning below - will rust if left uncoated)
The "Raw Dog" uncoated option is ready to add primer and paint or powder coating so you can color match your vehicle or just add any finish of your choosing. Only the Jowl hooked bodies should be powder coated, not the pin. Coating the pin will hinder the assembly functionality. (***Please note: this option will show signs of weathering and rust if left uncoated.)
Specs:
- Item: Anchor Shackle
- Color: 15 available
- Pin Style: Proprietary Design
- Working Load Limits (WLL):
- 1/2 Size: 4,000 lb.
- 5/8 Size: 7,000 lb.
- 3/4 Size: 10,000 lb.
- 7/8 Size: 13,000 lb.
- Minimum Breaking Strengths (MBS):
- 1/2 Size: 20,000 lb.
- 5/8 Size: 35,000 lb.
- 3/4 Size: 50,000 lb.
- 7/8 Size: 65,000 lb.
- Factor of Safety (FoS): All Sizes 5:1
- Width Between Ears:
- 1/2 size: 0.81" (20.57mm)
- 5/8 size: 1.06" (26.92mm)
- 3/4 size: 1.25" (31.75mm)
- 7/8 size: 1.49" (38.00mm)
- Body Finish: Powder Coated
- Pin Finish: Black Nickel Plated
- Pin Diameters:
- 1/2 Size Pin Diameter: 5/8" (0.625")
- 5/8 Size Pin Diameter: 3/4" (0.75")
- 3/4 Size Pin Diameter: 7/8" (0.875")
- 7/8 Size Pin Diameter: 1.0" (1.0")
- Pin and Cap Screw Thread Sizes:
- 1/2 Size: M10 x 1.5mm
- 5/8 Size: M14 x 2.0mm
- 3/4 Size: M18 x 2.5mm
- 7/8 Size: M22 x 2.5mm
- Pin Material: Grade 8 Carbon Steel
- Body Material: Chromoly Steel
- PATENT No. D1,050,874
Manual: Jowl Split Shackle 1/2 Read First Instructions
Manual: Jowl Split Shackle 5/8 Read First Instructions
Manual: Jowl Split Shackle 3/4 Read First Instructions
Manual: Jowl Split Shackle 7/8 Read First Instructions
Manual: Raw Dog Custom Color Coating Instructions

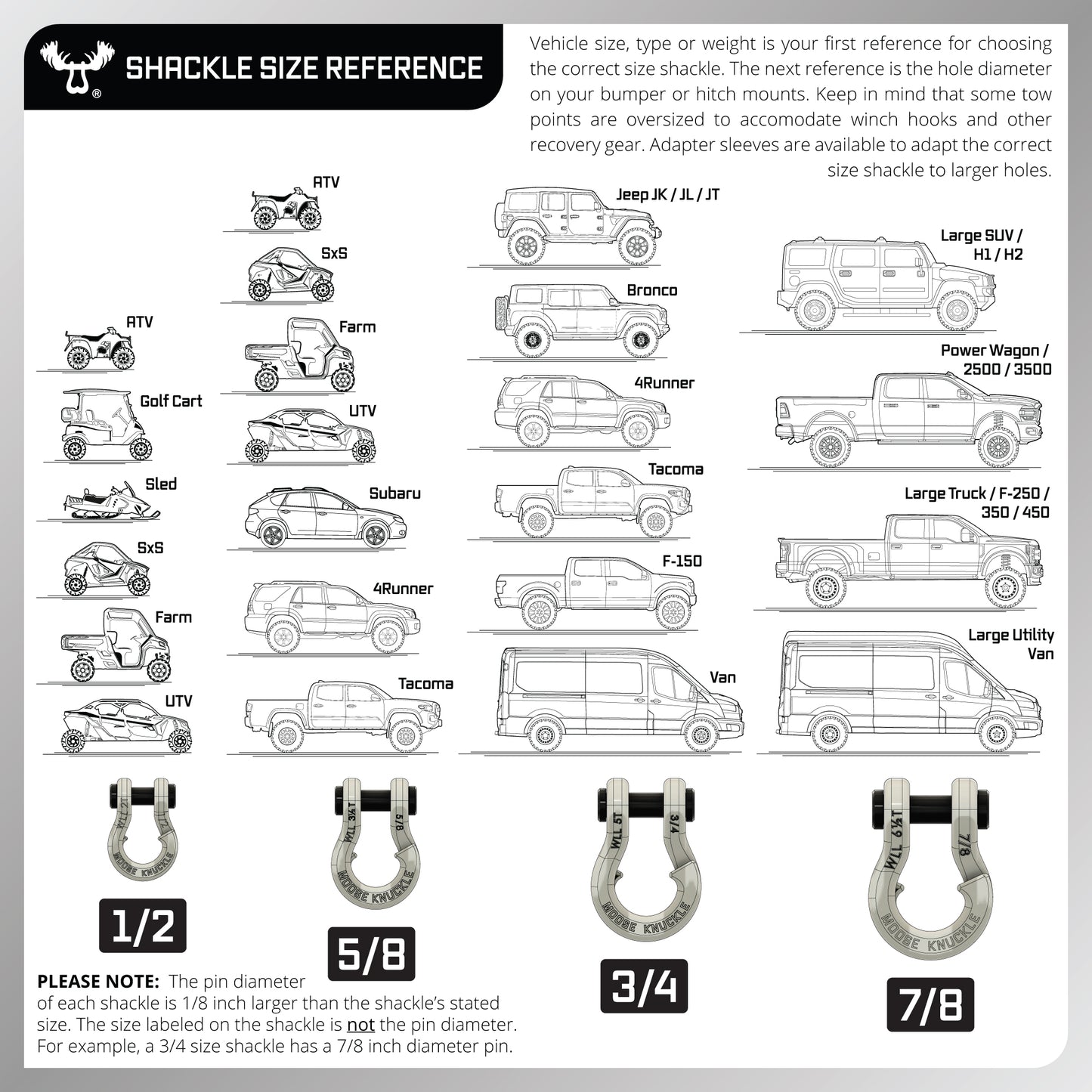

Resource: Split Shackle Vehicle Size Reference Guide
Jowl Split Shackle Installation
